[00:03:08] -!- sumpfralle has quit [Ping timeout: 272 seconds]
[00:06:10] <alex4nder> dirty_d: yah, that's not that accurate.. so you're probably good with N possible automatic height solutions
[00:07:43] <dirty_d> yea, im probably gonna get reall good at using shims, lol
[00:08:02] -!- anth0ny has quit [Quit: anth0ny]
[00:11:46] <dirty_d> i imagine there are modules for game controllers and stuff hopefully
[00:12:12] <Cromaglious> Hmm it's a induction gage... so I guess I have to set up a ocilator, then read the inductance
[00:12:52] -!- gonzo_nb has quit [Remote host closed the connection]
[00:12:56] -!- atom1 [atom1!~tom@ip68-102-196-57.ks.ok.cox.net] has joined #linuxcnc
[00:12:56] -!- atom1 has quit [Changing host]
[00:12:56] -!- atom1 [atom1!~tom@unaffiliated/toml/x-013812] has joined #linuxcnc
[00:13:34] <dirty_d> Cromaglious, what is this?
[00:14:00] <Cromaglious> Precitech R3?12 inductance gage heads
[00:14:31] <dirty_d> whats it used for?
[00:16:25] <Cromaglious> they are touch gauges with induction sensor in them
[00:18:15] <Cromaglious> or a coil with a movable slug connected to the lever tip

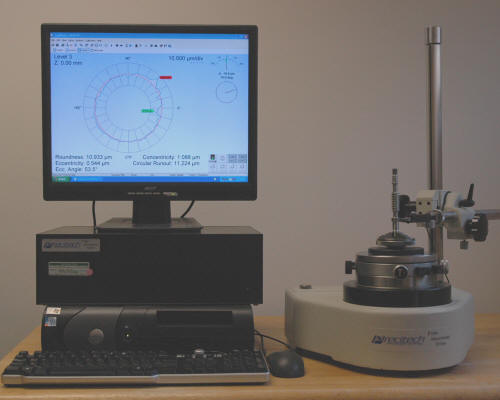

[00:18:57] <Cromaglious> http://www.emigage.com/images/precitech8150_1.jpg is one
[00:19:51] <dirty_d> how accurate is it supposed to be?
[00:20:06] <Cromaglious> damn accurate
[00:20:16] <dirty_d> and how do you calibrate it? two known height things, and interpolate between?
[00:21:05] -!- Nick001-shop has quit [Quit: ChatZilla 0.9.91.1 [Firefox 34.0.5/20141126041045]]
[00:22:49] <Cromaglious> http://itslinux.org/pics/touchsensor.jpg
[00:23:17] <dirty_d> didnt work
[00:23:37] <Cromaglious> http://itslinux.org/pics/touchSensor.jpg
[00:24:17] <Cromaglious> damn winblows will not rename same name different case
[00:25:35] * LeelooMinai noteds "Rejected" stamp
[00:25:36] <dirty_d> oh hmm
[00:26:07] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[00:26:15] <LeelooMinai> I hope it's not a brand name:)
[00:27:34] -!- The_Ball has quit [Ping timeout: 265 seconds]
[00:29:27] <Cromaglious> http://itslinux.org/pics/insidetouch.jpg
[00:30:30] <Cromaglious> the opened on doesn't hold tight enough nd the finger mooooooves too eaaasy
[00:30:47] <Cromaglious> hmmm need to clean this keyboard
[00:31:20] -!- nerdfiles has quit [Ping timeout: 264 seconds]
[00:31:38] <Cromaglious> had a loose wire inside the plug
[00:31:54] -!- TTN has quit [Ping timeout: 245 seconds]
[00:32:52] -!- XXCoder has quit [Ping timeout: 256 seconds]
[00:35:51] -!- koo5 has quit [Ping timeout: 256 seconds]
[00:35:53] <Cromaglious> so I need to map out the wiring, figure out the inductance per pair and resistance. then I can get an Ardunio and start playing with it
[00:36:21] -!- atom1 has quit [Quit: Leaving]
[00:37:21] <Cromaglious> I really only need it to be a touch switch and not a measuring device. So all I need to do is get a reading and trigger on change
[00:39:27] <dirty_d> for homing?
[00:40:26] -!- The_Ball [The_Ball!~ballen@220-244-24-84.static.tpgi.com.au] has joined #linuxcnc
[00:40:50] <Cromaglious> touch sensor for digitizing
[00:40:55] -!- swingley_ has quit [Remote host closed the connection]
[00:40:55] <dirty_d> ahh
[00:42:57] <Cromaglious> off to the winery to finish setting up for the play
[00:46:27] -!- anth0ny has quit [Quit: anth0ny]
[00:53:52] -!- rob_h has quit [Ping timeout: 252 seconds]
[00:55:06] -!- koo5 [koo5!~sirdancea@236.152.broadband3.iol.cz] has joined #linuxcnc
[00:58:15] -!- anth0ny has quit [Quit: anth0ny]
[00:59:26] -!- jsr [jsr!~jsr@in-184-1-134-167.dhcp.embarqhsd.net] has joined #linuxcnc
[01:12:11] -!- The_Ball has quit [Ping timeout: 246 seconds]
[01:12:53] -!- PetefromTn_ has quit [Quit: I'm Outta here!!]
[01:14:34] <zeeshan> andypugh: hi
[01:18:44] -!- mttr [mttr!~mttr@0016019a1697.cpe.westmancom.com] has joined #linuxcnc
[01:24:02] -!- Roguish [Roguish!~chatzilla@c-50-143-183-159.hsd1.ca.comcast.net] has joined #linuxcnc
[01:24:18] -!- mozmck has quit [Read error: Connection reset by peer]
[01:26:58] -!- Valen has quit [Remote host closed the connection]
[01:27:47] -!- The_Ball [The_Ball!~ballen@220-244-24-84.static.tpgi.com.au] has joined #linuxcnc
[01:37:06] <LeelooMinai> zeeshan: That channel is crazy... Better ask here instead:)
[01:37:23] <zeeshan> haha
[01:37:25] <zeeshan> that guy is retarded
[01:37:25] <LeelooMinai> Yes, I have soldered them. But in general I use reflow oven to assemble my designs.
[01:37:38] <zeeshan> is it like soldering stuff on xbox's
[01:37:41] <zeeshan> ive done that in the past
[01:37:49] <zeeshan> with a magnifying glass and a fine tip solder gun
[01:38:04] <zeeshan> it was a pain in the ass to not set stuff on fire :)
[01:38:10] <LeelooMinai> It's just a cheap toeaster oven with some extra insulation I stuffed in it + a controller I made.
[01:38:15] <zeeshan> ah
[01:38:48] <zeeshan> im sick of reading this data sheet!!!
[01:38:59] <zeeshan> so i talked to cpressed who uses a similar chip
[01:39:01] <LeelooMinai> So there's a thermocouple probe inside the oven and the controller monitors inside temperature and turns it on/off so it follows reflow curve recommended for particular solder paste type.
[01:39:02] <zeeshan> and he's running a bridge directly to it
[01:39:07] <zeeshan> without an external amplifier
[01:39:10] -!- Loetmichel2 [Loetmichel2!~cylly@p54B11C9E.dip0.t-ipconnect.de] has joined #linuxcnc
[01:39:37] <zeeshan> LeelooMinai: that is cool
[01:39:52] <LeelooMinai> Well, as you know by now, it may work, just you may lose some resolution.
[01:40:01] -!- Loetmichel has quit [Ping timeout: 264 seconds]
[01:40:01] <zeeshan> LeelooMinai: not according to the datahseet
[01:40:08] <zeeshan> it's meant to work with low voltage singles
[01:40:10] <zeeshan> *signals
[01:40:23] <zeeshan> they say that if you actually give a signal close to the reference voltage, you get a lot more error
[01:40:49] <LeelooMinai> I don't know which one is that now, but as long as the signals are nicely within the input range, ok
[01:40:54] <zeeshan> its some fancy delta sigma adc
[01:41:23] -!- mozmck [mozmck!~moses@67.210.159.245] has joined #linuxcnc
[01:41:23] <zeeshan> By increasing the OSR, and thus reducing the output data rate, the noise performance of the ADC can be optimized.
[01:41:28] <zeeshan> osr = oversampling rate
[01:41:39] <zeeshan> n other words, the inputreferred noise drops when reducing the output data rate because more samples of the internal modulator are averaged to yield one conversion result. Increasing the gain also reduces the input-referred noise, which is particularly useful when measuring low-level signals
[01:41:57] <zeeshan> to a limit that is :P
[01:42:21] <LeelooMinai> Yes, ok, but that's the general idea. You still need to work out the real numbers
[01:42:31] <zeeshan> not really sure how to
[01:42:37] <LeelooMinai> Because "low" is a relative term
[01:42:38] <zeeshan> they give a bunch of formulas
[01:43:00] <LeelooMinai> Yes, you may need to spreadsheet them and plug in your scenario
[01:43:01] <zeeshan> "effective number of bits" = In (Full scale range / Vrms-noise) / IN(2)
[01:43:07] <zeeshan> fsr i know
[01:43:15] <zeeshan> v_rms noise they only list for 2.048, mine is 5v
[01:43:25] <zeeshan> no idea what in(2) is
[01:43:48] <zeeshan> i think if i can get this calculation down, itll give me more insight on how its going to perform
[01:44:17] <LeelooMinai> DOn't know - IN(2) looks like something you need to find there. IN means usually input
[01:44:31] <zeeshan> use your master electronics brain
[01:44:32] <zeeshan> http://www.ti.com/lit/ds/symlink/ads1220.pdf
[01:44:40] <zeeshan> page 15
[01:44:42] <zeeshan> section 7.1
[01:44:43] <zeeshan> eqn 1
[01:44:55] <LeelooMinai> What master electronics - I am a programmer and EE is my short-lived hobby:)
[01:45:08] <zeeshan> a lot more smarter than me in the subject :)
[01:45:18] <LeelooMinai> Let me see
[01:46:02] <LeelooMinai> That's ln(2) = natural log of 2 :)
[01:46:21] -!- swingley has quit [Ping timeout: 265 seconds]
[01:47:43] <zeeshan> LOL
[01:47:45] <zeeshan> hahahaha
[01:47:55] <zeeshan> i can't believe i didnt see that!
[01:48:02] <LeelooMinai> http://www.wolframalpha.com/input/?i=ln%282%29
[01:48:13] <zeeshan> oh i know ln by heart :)
[01:48:25] <zeeshan> actually idont, but i know the main values
[01:48:27] <zeeshan> like lne = 1
[01:48:33] <LeelooMinai> Yes, so it's a constant
[01:51:56] <zeeshan> okay so full scale range at gain of 128 is +/- 0.016V , so at 20S/s , they say 0.09 uVrms , ln(+/- 0.016/0.09)/ln(2)
[01:51:59] <zeeshan> numb er doesnt make sense :)
[01:53:09] -!- AR_ [AR_!~AR@24.238.81.234.res-cmts.sth2.ptd.net] has joined #linuxcnc
[01:53:12] <zeeshan> -2.5
[01:53:33] <zeeshan> so im assuming that means 24bits - 2.5
[01:53:40] <LeelooMinai> That's micro not milli
[01:53:56] <zeeshan> whoops
[01:54:03] <LeelooMinai> So 90 nV
[01:54:18] <zeeshan> .09 e-6
[01:54:24] <LeelooMinai> 90e-9
[01:54:35] <zeeshan> im used to using M and G
[01:54:35] <zeeshan> lol
[01:54:38] <zeeshan> not the other way around
[01:54:45] <zeeshan> well actually thats a lie, we use microstrains all the time
[01:54:54] <FinboySlick> Anyone here familiar with taking appart brushless fans like these?
http://i01.i.aliimg.com/wsphoto/v0/1301209271/Frameless-graphics-card-fan-for-Asus-YD128015LS-R128015SH-8600-9800g-9600-GTS450-260-7515-75X75X15MM-7CM.jpg Pealed off the stickers but it seems there's no access to the shaft on the bottom and it is fixed to the fan (moves axially relative to the bracket)
[01:55:20] <zeeshan> ln(+/- 0.016/9e-8)/ln(2)
[01:55:21] <zeeshan> er
[01:56:21] <zeeshan> ln(+/- 0.016e-3/9e-8)/ln(2) = 7.5
[01:56:24] <zeeshan> eek!
[01:58:45] <zeeshan> okay i think i finally got it. fsr is actually 0.032. ln(0.032e-3/0.09e-6)/ln(2) = 8.5 bits
[01:58:47] <zeeshan> thats pretty bad!
[01:59:38] <zeeshan> that works out to a resolution of 5.7mV.
[01:59:56] <zeeshan> which means +/- 300lb
[01:59:59] <zeeshan> in practical numbers
[02:04:20] <zeeshan> grr this makes me so mad when people dont list units
[02:04:26] <zeeshan> its actually 18.49 BITS
[02:04:27] <zeeshan> !!!!!1
[02:04:43] <zeeshan> LeelooMinai: you left me hanging!
[02:05:00] -!- fablab has quit [Ping timeout: 252 seconds]
[02:05:13] -!- The_Ball has quit [Ping timeout: 264 seconds]
[02:09:03] <LeelooMinai> Watched House of Cards episode - cannot sit by the computer all the time (have to eat:)
[02:09:24] -!- adam3999 [adam3999!~adam3999@pool-108-38-17-37.lsanca.fios.verizon.net] has joined #linuxcnc
[02:09:27] <zeeshan> you eat on the comp
[02:09:47] <LeelooMinai> E, no, I prefer to watch some TV show and eat, to have a break
[02:10:24] <zeeshan> anyway, the final answer is
[02:10:31] <zeeshan> 0.049 lb is the resolution
[02:10:33] <zeeshan> after all said and done
[02:10:44] <zeeshan> i was happy with +/- 25lb
[02:11:32] <LeelooMinai> Yes, well, there are also errors due to things that may happen in the "real world", due to PCB layput, cables, etc. - you will know those when you build and test
[02:11:49] <zeeshan> yea
[02:11:51] <zeeshan> but this gives me a ball park
[02:11:55] <zeeshan> on best possible performance
[02:12:20] <zeeshan> before i was clueless :)
[02:13:59] <MacGalempsy_> question: I cannot get the xaxis to cruise without the amplifier faulting. with the same settings the y axis runs, but when switching the cables over to the y amp the fault happens there too. any ideas on how to test the motor?
[02:15:31] -!- furrywolf [furrywolf!~randyg@174.144.24.139] has joined #linuxcnc
[02:16:11] <zeeshan> amplifier faulting how?
[02:16:26] <zeeshan> does your amplifier have a fault output?
[02:16:35] <zeeshan> for troubleshooting?
[02:16:39] <MacGalempsy_> yes, only fault or not fault
[02:16:42] <zeeshan> haha
[02:16:45] <zeeshan> that doesnt help much!
[02:16:49] <zeeshan> first thing
[02:16:53] <MacGalempsy_> the manual states either a short or overheating
[02:16:55] <zeeshan> are the drops really hot?
[02:16:58] <zeeshan> *drives
[02:17:09] <zeeshan> oh trust me, i know ALL about short testing
[02:17:16] <zeeshan> are these brushed servos?
[02:17:26] <MacGalempsy_> yes they are brushed
[02:17:30] <zeeshan> okay its really easy
[02:17:41] <zeeshan> first thing, disconnect it from the system
[02:17:47] <zeeshan> measure resistance of the coil
[02:17:53] <zeeshan> between +/- .
[02:17:57] <zeeshan> should be like 0.5 ohms
[02:18:00] -!- The_Ball [The_Ball!~ballen@220-244-24-84.static.tpgi.com.au] has joined #linuxcnc
[02:18:11] -!- fablab [fablab!~fablab@2001:a60:13b0:8e01:c0c6:9d70:a2b5:1f89] has joined #linuxcnc
[02:18:19] <MacGalempsy_> ok let me shut it down and try that
[02:18:23] <zeeshan> then measure resistance between the grounding point of the motor and the motor lead
[02:18:27] <zeeshan> so ground -> +
[02:18:29] <zeeshan> ground -> -
[02:19:08] <MacGalempsy_> man thats going to be a beotch because I got to pulll the whole housing apart to get to the motor
[02:19:21] <zeeshan> well
[02:19:27] <zeeshan> can you see any metallic part of the motor?
[02:19:33] <zeeshan> without disassembling it?
[02:19:34] <MacGalempsy_> no its under a cover
[02:19:40] <zeeshan> do you have a ground cable running to the motor?
[02:19:46] <MacGalempsy_> yah
[02:19:51] <zeeshan> okay dont take it apart for now
[02:19:55] <zeeshan> just disconnect it at the drive
[02:20:03] <zeeshan> and measure using the motor lead wires going to the drive
[02:20:09] <zeeshan> you need to disconnect it from the drive though.
[02:20:20] <MacGalempsy_> k
[02:21:41] <MacGalempsy_> resistance to the motor is 2ohm
[02:21:55] <MacGalempsy_> let me test the y which seems to be good
[02:23:25] <MacGalempsy_> ok x = 2ohm y=2.8ohm z = 1.5ohm
[02:23:42] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[02:24:44] <pcw_home> you might want to measure at several rotational positions
[02:25:03] <MacGalempsy_> ok
[02:25:34] <pcw_home> might be brush issues, which means you probably have to look :)
[02:26:16] -!- AR_ has quit [Ping timeout: 252 seconds]
[02:28:11] -!- The_Ball has quit [Ping timeout: 250 seconds]
[02:28:28] <zeeshan> check for shorts
[02:28:30] <zeeshan> :P
[02:29:25] <MacGalempsy_> they cruised quite well before I pulled all the wires off the mesa board, I looked at the connections and they seemed solid
[02:29:38] -!- TTN has quit [Ping timeout: 244 seconds]
[02:29:55] <Tom_itx> is there any reason to reinstall the live cd if i took a hdd from one pc and put it into another or will linux reconfigure for the new hardware?
[02:30:07] <Tom_itx> it seems to work ok so far
[02:30:56] -!- FreezingCold has quit [Ping timeout: 246 seconds]
[02:30:57] <adam3999> tom, i wouldn't worry about it
[02:31:39] <adam3999> the installer isn't going to do much, if anything, different depending on the HW you have
[02:31:46] <adam3999> not like windows anyway
[02:32:33] <pcw_home> Ive used the same image for a dozen or so different PCs with no trouble
[02:32:45] <Tom_itx> i ordered a pico psu for it and the damn usps sent it back to the vendor
[02:33:39] <pcw_home> I tried hm2_eth on my laptop first by connecting my normal test SSD to the laptops ESATA port
[02:33:40] <adam3999> did you buy this one?
[02:33:40] <adam3999> http://www.ebay.com/itm/DC-ATX-160W-Pico-Switch-PSU-Car-Auto-Mini-ITX-ATX-Power-Supply-Module-/161536125937?pt=LH_DefaultDomain_0&hash=item259c4dabf1
[02:33:48] <Tom_itx> went from fremont to oakland and back
[02:33:56] <adam3999> i found one from a US shipper for $17 and change, works great with my asrock Q1900M
[02:34:05] <pcw_home> i could have almost grabbed it
[02:34:27] <Tom_itx> no i got the 120
[02:34:31] <adam3999> i have it running on the +12VDC 4A standby power from this power supply
[02:34:31] <adam3999> http://www.ebay.com/itm/New-Genuine-Dell-PowerEdge-7250-1200W-Server-Power-Supply-K4469-DPS-1200AB-/381082335048?pt=LH_DefaultDomain_0&hash=item58ba46f748
[02:34:33] <adam3999> works great
[02:34:34] <Tom_itx> same as the one in this pc
[02:34:46] <adam3999> no need to spend $130 at automation direct for a 48V 12A power supply
[02:34:48] -!- f1oat3 has quit [Ping timeout: 244 seconds]
[02:40:33] <Tom_itx> they don't seem to eager to check on it for me either
[02:40:47] <adam3999> does anyone know if there are keyboard shortcuts to toggle between continuous, 0.001", 0.005", etc when jogging manually?
[02:41:00] -!- The_Ball [The_Ball!~ballen@220-244-24-84.static.tpgi.com.au] has joined #linuxcnc
[02:41:33] <CaptHindsight> what was the story on that Dell Intel box for $40 on ebay? Did they all have poor latency or do you just need the magic BIOS settings?
[02:42:06] <pcw_home> Not sure, mine was fine
[02:43:34] -!- adam3999_ has quit [Quit: Connection closed for inactivity]
[02:45:40] <pcw_home> freeby.mesanet.com/7800sff.png
[02:45:57] <mozmck> that was an HP wasn't it?
[02:46:12] <pcw_home> yeah
[02:46:26] <pcw_home> works fine for hm2_eth also
[02:47:15] -!- swingley has quit [Ping timeout: 265 seconds]
[02:48:16] <Tom_itx> pcw_home, do i want W10 on the 6i24 up or down for normal operation?
[02:48:23] <Tom_itx> it's the eeprom select one
[02:48:25] <pcw_home> didn't do much with the BIOs just turned off what little
[02:48:26] <pcw_home> power management you can control and disabled hyperthreading
[02:48:49] <pcw_home> not sure...
[02:48:57] <Tom_itx> default is up but it shipped down
[02:49:12] <Tom_itx> does that affect uploading bitfiles to it?
[02:51:14] <pcw_home> no, should make no difference (there's nothing in the bridge EEPROM anyway so W10 is dont care ATM)
[02:51:33] <Tom_itx> so there's no jumper for uploading bitfiles to it
[02:51:41] <pcw_home> no
[02:51:44] <Tom_itx> ok
[02:52:37] -!- Tecan has quit [Ping timeout: 264 seconds]
[02:52:37] <Tom_itx> i see if i use a 5i24 bit file i need a 33Mhz clock and 6i24 i use 66Mhz
[02:52:49] <pcw_home> the 6I24 (and 6i25) are a bit safer for playing with bitfiles since you can bootstrap blank card
[02:52:49] <Tom_itx> what's the difference?
[02:53:47] <Tom_itx> the zip i downloaded is a 5i24.zip as the 6i24 was 404
[02:53:56] <pcw_home> thats about it, 6i24 bitfiles allow 66 MHz PCI bus interface
[02:53:57] <Tom_itx> but the ucf for the 6i24 is in it
[02:54:06] <Tom_itx> same structure?
[02:54:18] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[02:54:23] <pcw_home> No 6i24 bitfiles yeat
[02:54:29] <Tom_itx> so if i use the 6i24.ucf i need 66Mhz selected
[02:54:37] <Tom_itx> ?
[02:54:54] <pcw_home> yes but I dont think it will work yet
[02:55:03] <Tom_itx> oh that's a future option..
[02:55:04] <Tom_itx> :D
[02:55:27] <Tom_itx> i'll leave it all default for now on the jumpers, everything else looks default
[02:55:38] <pcw_home> it _might_ work...
[02:55:56] <Tom_itx> what might work?
[02:56:07] <pcw_home> a 6I24 bitfile
[02:56:24] <furrywolf> if I get a 7i76e, how much work is needed to set it up? is it a simple move wires over and reconfigure thing, or will I have to spend a month dicking around trying to compile software that won't compile, patching kernels, etc?
[02:56:33] <Tom_itx> how do i tell the difference? just the 6i24.ucf file?
[02:56:51] <pcw_home> I sort of learned from the 5i25/6i25 that there really was no need to have different bitfiles
[02:57:14] <pcw_home> a lot more work for a few usec faster
[02:57:42] <Tom_itx> ok, i'll just select the 6i24.ucf and pick a bit file that suits the configuraton
[02:57:55] <Cromaglious> sheeshz just looked at where Mesa is located... I used to clean the sewer lines in their neighborhood
[02:57:57] -!- Roguish has quit [Remote host closed the connection]
[02:58:03] <pcw_home> use the 5i24 card file
[02:58:13] <Tom_itx> ucf?
[02:58:33] <pcw_home> furrywolf you can download a working 2.7 package from the buildbot
[02:58:43] <pcw_home> card file
[02:58:58] <pcw_home> XXXXcard.vhd
[02:59:05] <Tom_itx> oh
[02:59:16] <Tom_itx> not a 6i24card.vhd?
[02:59:22] <pcw_home> no
[02:59:24] <Tom_itx> ok
[03:00:06] <pcw_home> you are building a 5i24 image basically (and all 5i24 bitfiles will work in the 6i24)
[03:00:16] <Tom_itx> ok
[03:00:53] <Tom_itx> damn psu is going in circles... fremont to oakland to fremont to oakland now it's in KC
[03:01:18] <pcw_home> closer anyway
[03:01:21] <Tom_itx> yep
[03:01:28] <Tom_itx> maybe tomorrow but probably wed
[03:01:43] <Tom_itx> unless they send it back again
[03:02:01] <Tom_itx> it's kinda a spare anyway
[03:02:07] <pcw_home> what the heck are they doing?
[03:02:15] <Tom_itx> who knows
[03:02:36] <Tom_itx> the gal at the local office said the label may have been smeared so they sent it back to the shipper
[03:02:41] <Tom_itx> she really had no clue
[03:03:00] -!- fablab has quit [Ping timeout: 272 seconds]
[03:03:40] <Tom_itx> i just got it in case i make a smaller box for the MB. this cheapass box i got is huge compared to the board
[03:04:39] <Tom_itx> damn, now the short backrail on the board is too short..
[03:09:32] <Tom_itx> mesaflash: ERROR: unsupported device 6i24
[03:10:26] -!- atom1 [atom1!~tom@ip68-102-196-57.ks.ok.cox.net] has joined #linuxcnc
[03:10:26] -!- atom1 has quit [Changing host]
[03:10:26] -!- atom1 [atom1!~tom@unaffiliated/toml/x-013812] has joined #linuxcnc
[03:11:25] <atom1> 5i24 worked
[03:11:46] <Tom_itx> so i should treat it like a 5i24?
[03:15:32] -!- fablab [fablab!~fablab@2001:a60:1352:3801:c0c6:9d70:a2b5:1f89] has joined #linuxcnc
[03:17:45] * furrywolf notices lots of people on ebay selling peppers claimed to be "hotter than the carolina reaper", but without any lab tests...
[03:19:01] -!- swingley has quit [Ping timeout: 255 seconds]
[03:19:50] -!- atom1 has quit [Quit: Leaving]
[03:19:51] -!- Flipp_ has quit [Remote host closed the connection]
[03:20:10] -!- Flipp_ [Flipp_!~Flipp@c-73-181-210-168.hsd1.wa.comcast.net] has joined #linuxcnc
[03:25:19] -!- FinboySlick has quit [Quit: Leaving.]
[03:25:47] -!- anth0ny has quit [Quit: anth0ny]
[03:42:22] -!- koo5 has quit [Ping timeout: 240 seconds]
[03:42:56] <LeelooMinai> furrywolf: As opposed to anyone else on ebay who always provides lab documentation for all the claims:p
[03:45:08] <furrywolf> http://www.ebay.com/itm/Hot-Chili-Pepper-Color-Explosion-Mega-Mixed-50-Seeds-/191531290188 that's cute... plant them all, and have no idea what's what. lol
[03:46:08] <roycroft> i think that's great
[03:46:25] <roycroft> surprises can be heaps of fun
[03:46:54] <LeelooMinai> You will get 30 tomatoes, 29 cucumbers and one that looks like hot pepper
[03:47:19] <LeelooMinai> So 10 extras:)
[03:47:19] -!- TTN has quit [Ping timeout: 245 seconds]
[03:47:40] <zeeshan> i guess the nice thing about surface mount is
[03:47:44] <zeeshan> you dont need to drill a shit load of holes
[03:47:49] <zeeshan> smart.
[03:47:59] <furrywolf> I bought two carolina repear plants... will see how hot they get.
[03:48:18] <zeeshan> those peppers look delicious
[03:48:32] <furrywolf> most peppers look delicious. :)
[03:48:53] <roycroft> but only the guatemalan insanity peppers are truly delicious
[03:49:22] <LeelooMinai> When I was small a put hot pepper into a tomato and geve it to some small boy and when he started to burn inside I told him he will die.
[03:50:10] <LeelooMinai> Then I had to run around the area and hide before his mom.
[03:50:14] -!- Mr_Sheesh has quit [Disconnected by services]
[03:50:40] -!- Mr_Sheesh [Mr_Sheesh!~mr_s@unaffiliated/mr-sheesh/x-0757054] has joined #linuxcnc
[03:50:41] <zeeshan> what are those terminals called
[03:50:44] <zeeshan> that mesa 7i77 comes with
[03:50:50] <zeeshan> detachable. theyre nice
[03:50:54] <LeelooMinai> Terminal blocks? :)
[03:50:57] <zeeshan> too generic
[03:50:58] <zeeshan> :)
[03:51:17] <zeeshan> i really dig the detachableness of them
[03:51:48] <LeelooMinai> Yes, convenient
[03:53:13] <furrywolf> zeeshan:
http://i.ebayimg.com/00/s/NjAwWDgwMA==/z/bLYAAOSw2s1U0PAU/$_57.JPG do those look delicious? :)
[03:53:31] <zeeshan> they do
[03:53:35] <zeeshan> i love peppers
[03:53:57] <furrywolf> heh. reports I've seen suggest that no matter how delicious they look, taking a good bite out of one isn't always smart.
[03:56:07] * LeelooMinai watches furrywolf's liver running away in panick
[03:57:38] <furrywolf> "The aftermath was very painful...I held it down but probably shouldn't have. I laid on the floor for about a half hour just trying to find a place to hide from the pain...ate a banana and started to feel a little better. I was in pain and had to stoop over hands on knees several times as I tried to cook some dinner on the grill for the fam."
[03:58:08] <furrywolf> http://thehotpepper.com/topic/36599-stc3248-2013-grow-log-seasons-greetings-and-seasons-end/?p=871160
[04:00:05] <LeelooMinai> I guess on those forums if you were stupid and ate some almost-leathal pepper, you get more cred. Maybe even a Hot Pepper Medal? :)
[04:00:32] <furrywolf> lol
[04:01:00] <furrywolf> as the person who's enough of an asshole to give peppers to kids and tell them they're going to die, I'm not sure I put much stock in your opinion.
[04:01:22] <LeelooMinai> I was kid then too:)
[04:01:48] <furrywolf> you weren't a very nice kid.
[04:02:10] <LeelooMinai> Well, no one is perfect. For my defense I knew he would not die:p
[04:04:17] -!- Mr_Sheesh has quit [Quit: BBL need to fix some hardware here]
[04:04:34] <furrywolf> I ordered Carolina Reaper, 7 Pot Brain Strain, and Naga Viper starts... I have plenty of Ghost / Bhut Jolokia and Moruga Trinidad Scorpion plants in the greenhouse already.
[04:06:37] <furrywolf> zeeshan: do you grow peppers?
[04:06:42] <zeeshan> yes
[04:06:48] <zeeshan> nothing fancy like that
[04:07:11] <zeeshan> finger hot peppers mostly
[04:07:48] <furrywolf> heh, I have others too... need to do an inventory and see what lived.
[04:08:20] <furrywolf> last year I had scorpions, ghost, thai hot, indian jalwa, jalapeno, fresno, serrano, super chili, mayan love, and about 15 others...
[04:08:30] * LeelooMinai feels out of place because of no pepper plantation at home
[04:08:45] <zeeshan> LeelooMinai:
http://www.digikey.ca/product-detail/en/EDSTL955%2F4/ED1835-ND/124174
[04:08:46] <zeeshan> found em
[04:08:47] <zeeshan> !
[04:08:59] <LeelooMinai> zeeshan: ...
[04:09:00] <furrywolf> and you claim not to own any toys either, which makes you just plain weird. :P
[04:09:01] <zeeshan> furrywolf: what kind of food do you use em on?
[04:09:07] <zeeshan> LeelooMinai: dont dot me
[04:09:11] <zeeshan> theres like 2903281032823809 kings on digikey
[04:09:33] <furrywolf> zeeshan: indian, vietnamese, whatever...
[04:09:37] <zeeshan> furrywolf: ah
[04:09:45] <LeelooMinai> The doting was regarding the prices of those on Digi:)
[04:10:11] <zeeshan> got a chjeaper soruce?
[04:10:15] <zeeshan> where you can order all this stuff in one go
[04:10:28] <LeelooMinai> zeeshan: Here, this is where I bought them:
http://www.taydaelectronics.com/connectors-sockets/terminal-blocks/pluggable.html
[04:10:46] <LeelooMinai> A "little bit" better prices
[04:10:51] <furrywolf> LeelooMinai:
http://www.wetforher.us/646-large_default/strap-on-harness-dildo-multicolor-sex-toy-lesbian-.jpg get one of those. it's so pretty you can leave it out as art.
[04:11:09] <zeeshan> im assuming these need round pads?
[04:11:12] <zeeshan> with thru holes
[04:11:19] <zeeshan> i hate making components in this diptrace thing
[04:11:45] <LeelooMinai> zeeshan: Sure, just make the holes a bit larger so that you don't have to use force for putting those in
[04:12:41] <furrywolf> http://i1260.photobucket.com/albums/ii580/stc3248/P1000226.jpg sure, that's how you grow PEPPERS, uh-huh...
[04:12:51] <LeelooMinai> zeeshan: DipTrace has one of the most user-friendly symbol/footprint editors. You should try some others like Eagle or KiCAD to see how monstrious the process can be
[04:12:58] <zeeshan> AH
[04:13:03] <Tom_itx> zeeshan which win 7 do you have?
[04:13:11] <zeeshan> 64
[04:13:13] <zeeshan> ult
[04:13:18] <Tom_itx> gawd
[04:13:24] <Tom_itx> that's like 500 bux
[04:13:37] <LeelooMinai> ...
[04:13:51] <Tom_itx> but you can run 32 bit programs on it?
[04:14:03] <Tom_itx> ie my cad cam?
[04:14:12] <LeelooMinai> Tom_itx: Welcome, time traveller, to 2015:)
[04:14:38] <zeeshan> yes tom
[04:14:44] <Tom_itx> i've seen 8 and peeked into the future... i don't like it
[04:15:03] <LeelooMinai> It's like 7, only better
[04:15:15] <Tom_itx> is it?
[04:15:21] <Tom_itx> the interface sucks
[04:15:22] <LeelooMinai> Yes
[04:15:23] <furrywolf> nothing like 1000W of fluorescent lamps to grow your "peppers" indoors.
[04:15:56] <MacGalempsy_> lol
[04:16:00] <zeeshan> MacGalempsy_: figure it?
[04:16:03] <LeelooMinai> Tom_itx: I see metro when the system boots, that's all...
[04:16:49] <MacGalempsy_> not yet. decided to get the rest of the wiring finished up, get all the connections done, then go back to troubleshooting after all the electrical stuff is out of the way
[04:16:51] <roycroft> have any of you tried making pcbs using toner transfer paper and a laminator?
[04:16:56] <roycroft> and if so, does it actually work?
[04:17:10] <Tom_itx> LeelooMinai, i've got 3 surface pro 3's with 8 on them
[04:17:11] <MacGalempsy_> just about done getting the last connections done.
[04:17:16] <Tom_itx> i don't care for it much
[04:17:22] <LeelooMinai> roycroft: Yes, I did a lot pcbs this way. Works for 2 layer pcbs with no too small traces
[04:17:32] <furrywolf> bbl, wolfy bedtime
[04:17:45] <roycroft> alignment must be tricky if you're doing 2 layer pcbs
[04:18:03] <roycroft> did you drill some through holes to help with alignment?
[04:18:24] <roycroft> and did you transfer the traces to both sides before etching?
[04:18:37] <LeelooMinai> Tom_itx: Win 8 is my main desktop - I cannot really say that I have any problems with it. As I said, I use it in Desktop mode, so it's like 7 with extras like better multi-monitor support and the History/Backup suport
[04:19:05] <LeelooMinai> roycroft: Yes, I drilled holes in the corners, or rather used some holes that pcb already needed to have
[04:19:10] <furrywolf> non-windows is my main desktop
[04:19:27] <furrywolf> I only use windows for a couple programs that need it... and I'll be converting the sherline to linuxcnc to get rid of one of them.
[04:19:34] -!- swingley has quit [Ping timeout: 252 seconds]
[04:19:36] <zeeshan> windows 7 has multimonitor support? :)
[04:19:47] <roycroft> i just got a new printer that has a dark printing mode, and a new laminator as well
[04:19:49] <zeeshan> i have 4 monitors on this baby!
[04:19:50] <LeelooMinai> Always had
[04:19:56] <roycroft> both for different purposes
[04:20:14] <roycroft> but i got to thinking i might be able to make pcbs with that gear
[04:20:26] <zeeshan> LeelooMinai: surely there is a standard library
[04:20:29] <zeeshan> for terminal pads
[04:20:31] <zeeshan> this is pathetic.
[04:20:45] <LeelooMinai> Using Linux as a desktop - no thx. The GUI standards on Linux are 10 years behind other OSes
[04:21:03] <zeeshan> i personally live the gui in linux way better
[04:21:12] <zeeshan> but it's fall is no support for real software
[04:21:18] <zeeshan> you can run matlab and ansys on it
[04:21:19] <zeeshan> thats about it
[04:21:34] <LeelooMinai> zeeshan: It takes about 1 minute to make footprint in there - I could make it in 20 seconds probably:)
[04:21:46] <zeeshan> LeelooMinai: maybe im doing something wrong then?
[04:21:51] <zeeshan> i first make the component in component editor
[04:21:56] <zeeshan> then i open the pattern editor and make the pattern
[04:22:03] <zeeshan> then go to the schematic and realize i f'ed up
[04:22:05] <zeeshan> and do it again
[04:22:06] <zeeshan> :)
[04:22:12] <MacGalempsy_> I just use linux to run linuxcnc. other than that I like windows 7 because its what I know how to use
[04:22:20] <LeelooMinai> Linux and GUI is almost like oxymoron - every app there does it in own way, and almost never it's a good way
[04:23:14] * MacGalempsy_ hears in the background, what?! windows7? get him!
[04:23:28] <roycroft> if you like windows, fine
[04:23:34] <roycroft> different strokes for different folks
[04:23:48] <roycroft> personally i find it intolerably difficult to use and, especially, admin
[04:24:16] <LeelooMinai> You are an admin? :)
[04:24:16] <roycroft> but if you're used to it there may be a comfort level that is of value to you
[04:24:24] -!- anth0ny has quit [Quit: anth0ny]
[04:24:24] <roycroft> not a windows admin
[04:24:35] <roycroft> but i've been admining unix systems for 35+ years
[04:24:59] <LeelooMinai> For me the point of nice desktop computer is that I don't have to site there and admin anything...
[04:25:10] <roycroft> yes
[04:25:17] <roycroft> which is why my laptop is a macbook pro
[04:25:19] <roycroft> go to store
[04:25:21] <roycroft> buy computer
[04:25:22] <roycroft> open box
[04:25:25] <roycroft> turn on computer
[04:25:26] <roycroft> work
[04:25:38] <roycroft> that's what front end computers are supposed to be about
[04:25:58] <roycroft> the back end isn't so easy though
[04:26:07] <Jymmm> sire it is
[04:26:16] <Jymmm> sure it is
[04:27:03] -!- furrywolf has quit [Ping timeout: 256 seconds]
[04:27:15] <LeelooMinai> I have Linux for what it's good for - sitting there in the basement 24 hours a day and doing some stuff in the background:)
[04:27:19] <Jymmm> We could deploy 80 servers in about 30 minutes
[04:28:14] <roycroft> if you're willing/able to conform your products and business practices to what someone else decided is appropriate your back end can be fairly straightforward to deply
[04:28:39] <roycroft> if you want to do anything interesting not so much
[04:29:30] <roycroft> if you're *just* an admin and you deploy products for which you have a development team then it can be easy to build servers
[04:29:38] <roycroft> if you're a developer/admin then not really
[04:30:58] <MacGalempsy_> Cromaglious: how is the laser cutter coming along?
[04:33:10] <roycroft> leelooninai: what kind of thermal transfer paper did you use for the pcbs?
[04:33:16] <roycroft> er, toner transfer paper
[04:33:17] <roycroft> sorry
[04:34:03] <LeelooMinai> roycroft: Laser printer glossy paper is good, but even better idea is using vinyl.
[04:34:33] <LeelooMinai> roycroft: Or even better idea just order PCBs from CHinese fabs.
[04:35:01] <roycroft> that takes too long
[04:35:25] <Jymmm> wait what?! laser cutter and vinyl... DONT DO IT!!!
[04:35:26] <LeelooMinai> Not if you pipeline the projects and do things in parallel. Planning:)
[04:35:49] <LeelooMinai> Jymmm: lol, what laser cutter? :)
[04:36:16] <roycroft> i prefer to keep my money as local as possible as well
[04:36:23] <Jymmm> No clue, I'm not really paying attention, just those two combined are BIG RED FLAGS
[04:36:49] <LeelooMinai> He asked about toner transfer. Using vinyl is better for that than paper.
[04:37:03] <roycroft> there is toner transfer paper that is designed for this kind of stuff
[04:37:13] <Jymmm> Ok, as long as a laser cutter is't involved.
[04:37:16] <roycroft> but i don't know how well it really works
[04:37:43] <roycroft> supposedly after you do the heat transfer of the toner a small amount of water will completely dissolve the paper
[04:38:07] <roycroft> the stuff is expensive though - about $2/sheet for a4 size
[04:38:15] <LeelooMinai> Yes, but why do that if with vinyl you don't have to dissolve anything
[04:38:39] <roycroft> i'm not sure how well vinyl will pass through my printer
[04:39:11] <LeelooMinai> It will pass fine - use thin Oracal they use to make signs. I did it many times
[04:39:28] <roycroft> i'm not dismissing your advice at all
[04:39:39] <roycroft> it's just a different unknown for me
[04:39:49] <LeelooMinai> http://imgur.com/sLaRJ
[04:40:14] <LeelooMinai> Just stick it on a paper, pass through, iron
[04:41:17] <roycroft> i would have to try it right away
[04:41:27] <roycroft> the printer i bought is refurbished, with a 30 day warranty
[04:41:50] <roycroft> i would want to do the experiment before the warranty expires
[04:42:51] <roycroft> i have a couple weeks, so i could give it a go in that time
[04:45:55] <roycroft> so this kind of stuff? :
[04:45:57] <roycroft> http://tinyurl.com/k8a3tjt
[04:46:23] <LeelooMinai> No, oracal 651
[04:46:31] <roycroft> ok, thanks
[04:46:34] -!- Tecan [Tecan!~fasdf@unaffiliated/unit41] has joined #linuxcnc
[04:46:35] <LeelooMinai> high gloss type
[04:48:54] <roycroft> so this stuff:
[04:48:55] <roycroft> http://tinyurl.com/ntsdefs
[04:49:23] <LeelooMinai> Yes, you will have supplie for 10 lifetimes though:)
[04:49:28] <LeelooMinai> supply*
[04:49:35] <roycroft> yes, that's quite a bit
[04:50:15] <LeelooMinai> Try to choose lighter colors - you will se the toner better
[04:50:25] <LeelooMinai> Or if you can transparent glossy that would be ideal
[04:50:27] <roycroft> yeah, the yellow should be pretty good
[04:50:30] <LeelooMinai> you can find*
[04:51:00] -!- jsr has quit [Remote host closed the connection]
[04:51:14] <roycroft> the first one i found was black
[04:51:19] <roycroft> i figured that would not work out very well
[04:56:32] -!- anth0ny has quit [Quit: anth0ny]
[05:02:22] * zeeshan is quickly realizing
[05:02:30] <zeeshan> to properly design circuits, and pcbs
[05:02:37] <zeeshan> you need to read a book, or take a class
[05:02:39] <zeeshan> so many little shits
[05:03:03] <zeeshan> The use of multiple vias in parallel lowers the overall inductance and is beneficial for connections to ground planes
[05:03:12] <zeeshan> im sure there is theory behind that :P
[05:05:32] -!- danylevskyi has quit [Quit: Leaving]
[05:06:04] <CaptHindsight> it gets trickier at high frequencies
[05:06:37] <CaptHindsight> but there's lots of well established techniques to follow
[05:07:18] <CaptHindsight> what you can get away with at low frequencies won't work well at high
[05:08:00] <CaptHindsight> multiple vias also increases the current capacity
[05:08:30] <CaptHindsight> filled vias also carry more current
[05:08:59] <CaptHindsight> solid cylinder vs a tube
[05:10:15] <CaptHindsight> there are hundreds of app notes on proper PCB layout
[05:10:31] <zeeshan> :P
[05:10:40] <zeeshan> its hard to randomly read
[05:10:43] <zeeshan> need an organized book
[05:10:59] <CaptHindsight> trace and space vs impedance
[05:11:18] <CaptHindsight> how to cross gaps in ground planes
[05:11:35] <CaptHindsight> layer spacing and copper thickness
[05:11:50] <CaptHindsight> dynamic impedance for multiple parallel signals
[05:12:11] <CaptHindsight> signals you don't want close to other signals
[05:12:32] <CaptHindsight> how to properly break out from BGA's
[05:13:11] <CaptHindsight> how to breakout from smt decoupling capacitors to vias and where to place them
[05:13:47] <LeelooMinai> zeeshan: I recommend this free app for PCB-related calculations:
http://www.saturnpcb.com/pcb_toolkit.htm
[05:14:13] <zeeshan> LeelooMinai: to use that software
[05:14:18] <zeeshan> you'd need to understand vias? :)
[05:14:39] <LeelooMinai> Vias is a plated hole - there - you understed most of it now:)
[05:14:40] <zeeshan> this stuff is a whole new world for me
[05:14:44] <zeeshan> haha LeelooMinai
[05:14:51] -!- Tanz [Tanz!~chatzilla@conr-adsl-209-169-123-188.consolidated.net] has joined #linuxcnc
[05:15:04] <CaptHindsight> and then there are IPC rules on trace and space, hole side vs pad size, hole location to traces etc etc
[05:15:13] <CaptHindsight> side/size
[05:15:48] <LeelooMinai> They are more like guidlines though
[05:15:54] <LeelooMinai> guidelines*
[05:16:16] <CaptHindsight> depends on the board house
[05:16:44] <CaptHindsight> if you start pushing the limits they will complain about yields
[05:17:23] <LeelooMinai> I don't think zeeshan will be pushing a lot of limits with his first pcb:)
[05:17:30] <zeeshan> haha
[05:17:32] -!- Tanz has quit [Client Quit]
[05:17:40] <zeeshan> i guarantee you it will set on fire
[05:17:41] <Cromaglious> sheeshz you'd think putting in a USB PCIe card wouldn't be that difficult
[05:17:56] <Cromaglious> USB 3 PCIe
[05:18:18] <CaptHindsight> looking back for really dense boards I'd use small board houses where the owner new the drilling machines so well he knew where it would have more or less repeatability
[05:18:25] <Cromaglious> ahh there's the light on my 1.5TG USB3 drive
[05:18:38] <Cromaglious> just waiting for it to show up in explorer now
[05:19:35] <LeelooMinai> zeeshan: My last design was 4 layer tiny board:
http://i.imgur.com/0a0OqH4.png
[05:19:43] <Cromaglious> hehe design 6 board onto one PCB then take a band saw and cut them apart?
[05:19:52] <zeeshan> LeelooMinai --- Level 99 achieved
[05:20:09] <zeeshan> that looks cool and fancy
[05:20:12] <LeelooMinai> FPGA + 1Gb ethernet
[05:20:22] -!- swingley has quit [Ping timeout: 240 seconds]
[05:20:24] <zeeshan> what was the point of it
[05:21:02] <LeelooMinai> It's for capturing trace data from ARM micros mostly and as a general gateway to 1G ethernet. Has also 1 Gb mDDR on it
[05:21:49] <Cromaglious> love the equal length traces going to the ethernet RJ45 port
[05:22:21] <CaptHindsight> zeeshan: layout your board and then post your files, we'll give you suggestions and point out any errors
[05:22:34] <LeelooMinai> But I don't really plan to go much more crazy than this... because I am just a hobbyist and big PCBs with more than 4 layers and some crazy specs, buried vias, etc. have still crazy prices. I don't want to pay $1k for pcb:)
[05:22:36] <zeeshan> im just laying out the schematic right now
[05:23:00] <zeeshan> LeelooMinai: how long did that take you to design
[05:23:07] <Cromaglious> My uncleeee worked at Texas Instruments back in the day... 10ns delay line... easy... just run a trace around the 10"x10" board
[05:23:19] <Cromaglious> err 100 or even 200ns
[05:23:44] <LeelooMinai> zeeshan: I am pretty easy going with my projects - do some work, then leave them alone, then go on some crazy binge and do a lot - cannot really tell:)
[05:24:33] <LeelooMinai> But if you want to do things the nice way, it takes time.
[05:24:46] <LeelooMinai> "never trust the aturouter" :)
[05:24:52] <zeeshan> hehe
[05:24:58] <zeeshan> did you work off datahseets
[05:25:02] <zeeshan> to figure out what components you needed?
[05:25:21] <LeelooMinai> As opposed to what? Talking to magical Elves? :)
[05:25:21] <CaptHindsight> http://imagebin.ca/v/1uJ6OZ4wgxeN don't worry, your board won't be anything like this :)
[05:25:57] <zeeshan> nah, like going back to the basics
[05:26:01] <CaptHindsight> you just need a low noise board with that 24b dac and clean power
[05:26:03] <zeeshan> and figure it out from electrical theory :P
[05:27:05] <LeelooMinai> zeeshan: Well, there's no lying - you need to know lot's of basics for the layout/design - so you can take into accout all details that normally you would not even be aware of.
[05:27:17] <zeeshan> exactly
[05:27:30] <zeeshan> its like mech eng design
[05:27:41] <LeelooMinai> But you may get away with it for some projects... But that's like blind chicken sometimes finding a grain:)
[05:27:42] <CaptHindsight> you'll learn by doing
[05:27:47] <zeeshan> theres so many failure modes
[05:28:42] <LeelooMinai> zeeshan: But to make you feel better, I am new to electronics relatively - maye 3 years and for the rest of time I was programming mostly.
[05:29:33] <Cromaglious> hehe I need a transmitter board.. 1.248Ghz oscillator with AM NTSC video injection and FM WB audio injection with 1watt out
[05:29:34] <zeeshan> hehe
[05:30:44] <zeeshan> https://www.dropbox.com/s/uu6uwjkm1zgdijo/circuit.pdf?dl=0
[05:30:48] <zeeshan> so this is pretty much what im trying to do
[05:30:54] <zeeshan> 2 thermo couples, 4 strain gages
[05:31:09] <CaptHindsight> http://www.mypage.tsn.cc/dakiller/dac1/dacb.png a beginners 24bit audio dac board
[05:31:37] <zeeshan> something will communicate over spi
[05:31:38] <zeeshan> with em
[05:31:49] <zeeshan> it'd be nice to do it directly from usb using that module LeelooMinai posted earlier
[05:31:55] -!- maximilian_h [maximilian_h!~bonsai@dslb-188-099-193-020.188.099.pools.vodafone-ip.de] has joined #linuxcnc
[05:34:29] -!- maximilian_h1 has quit [Ping timeout: 256 seconds]
[05:35:23] <Cromaglious> oops it's changed 1.28925 Ghz
[05:36:11] -!- zeeshan has quit [Ping timeout: 256 seconds]
[05:36:25] -!- zeeshan [zeeshan!~kvirc64@CPE0018e7cea342-CM5039555db2cc.cpe.net.cable.rogers.com] has joined #linuxcnc
[05:36:41] <zeeshan> lagg
[05:38:52] <CaptHindsight> zeeshan: Mesa also has that 6-SPI to anything IO card
[05:39:13] <zeeshan> 7i46?
[05:39:19] <CaptHindsight> yes
[05:40:49] <zeeshan> hm
[05:41:01] <zeeshan> but i'd still need something else to interface it with the computer
[05:42:01] <CaptHindsight> is this separate from your mill?
[05:42:07] <zeeshan> yes
[05:42:20] <CaptHindsight> 7i43
[05:42:24] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[05:42:59] <zeeshan> arduino uno is like 30 bux
[05:43:04] <zeeshan> and will interface with this
[05:43:06] <zeeshan> for this application
[05:43:10] <LeelooMinai> zeeshan: That's one of my recent projects. I circled the IC that is I2C to USB bridge, same idea as with SPI, it's relatively simple to add it to your design as you can see.
http://i.imgur.com/95d7vn1.jpg
[05:43:47] <zeeshan> your board looks so nice
[05:43:48] <zeeshan> :D
[05:44:21] <zeeshan> http://ww1.microchip.com/downloads/en/DeviceDoc/22288A.pdf
[05:44:26] <zeeshan> i came across this while goolging
[05:45:15] <LeelooMinai> I also wrote an app that used that USB bridge to monitor the whole board:
http://i.imgur.com/Evamdnk.png
[05:45:44] <LeelooMinai> I would go with a bridge like that instead of external Arduino or other monstrosity.
[05:45:46] <renesis> leeloominai: ground loop, how considerate
[05:46:00] <zeeshan> yea it makes no sense to run an uno
[05:46:03] <zeeshan> just for spi communication
[05:46:11] <zeeshan> but it is 28$ :P
[05:46:44] <LeelooMinai> The extra usb connector + bridge IC will be probably like $5
[05:47:12] <LeelooMinai> renesis: You mean test point? Ground loops are bad:p
[05:47:28] <zeeshan> ive had enough of electronics for this week
[05:47:35] <zeeshan> its time to get back to mech eng!
[05:47:36] <zeeshan> :]
[05:47:42] <zeeshan> brain is too saturated
[05:48:03] <LeelooMinai> It's too late - now you will not be able to sleep until you complete your first pcb design.
[05:48:05] <renesis> leeloominai: technically its both! but yeah those things save me a lot of time, rarely there
[05:48:20] <zeeshan> hahaha
[05:48:51] <renesis> layout is def one of my favorite parts of the art
[05:49:24] <renesis> its like ceramics, functional art
[05:49:57] <LeelooMinai> What is ceramics though? :)
[05:50:13] <renesis> mud tech
[05:50:22] <LeelooMinai> Making pots and stuff?
[05:50:27] <renesis> yeah
[05:51:13] <renesis> ceramics will get shit from other art fields because a lot of it is functional
[05:51:37] <renesis> painters and sculptors talk shit
[05:51:43] <LeelooMinai> Lots of art is functional though
[05:51:56] <renesis> fine art typically isnt
[05:51:57] <LeelooMinai> Or at least can be
[05:52:14] <renesis> but yeah anyone who does technical stuff sees a lot of work as someones art
[05:53:18] <LeelooMinai> There's a saying "stat of the art" after all and people use it for many technical devices:)
[05:53:22] <LeelooMinai> state*
[05:53:25] <renesis> even if its as basic as, this is an expression of dudes mood at the office during this project
[05:54:10] <LeelooMinai> Also, arts is rather subjective - what is art for one person may be meaningless to another
[05:55:37] <renesis> you can definitely look at a PCB and connect it to cultures and eras
[05:56:34] <LeelooMinai> Yes, if it has a lot of hot glue on it and bode wires, it's from China:)
[05:56:41] <LeelooMinai> bodge*
[05:57:22] <LeelooMinai> j/k, Chine can design nice pcbs if they want
[06:00:41] <zeeshan> man tomorrow is going to be a long day
[06:00:53] <zeeshan> gotta prepare samples with known indentation depths
[06:01:02] <zeeshan> so gonna use a ball nose end mill to make some cuts
[06:01:19] <CaptHindsight> zeeshan: any masks yet?
[06:01:28] <zeeshan> then gotta laser cut a bunch of stuff for students
[06:01:30] <zeeshan> CaptHindsight: yes
[06:01:33] <zeeshan> i already tried it out
[06:01:34] <zeeshan> and failed
[06:01:34] <zeeshan> lol
[06:01:40] <zeeshan> the dots are too big
[06:01:40] <CaptHindsight> \0/
[06:01:52] <zeeshan> i was thinking of using an air brush to spray it
[06:02:03] <CaptHindsight> to large a diameter?
[06:02:08] <zeeshan> nah to a fine mist
[06:02:11] <zeeshan> so the dots are small
[06:02:15] <zeeshan> but i dont know if that will work
[06:02:33] <CaptHindsight> the dots on the mask are too large a diameter?
[06:02:34] <zeeshan> im using our 3d microscope to do measurements right now
[06:02:41] <zeeshan> CaptHindsight: nah theyre small
[06:02:51] <zeeshan> but i dunno, when it goes through the mask
[06:02:55] <zeeshan> it spreads out a big making them huge
[06:03:59] <CaptHindsight> substrate, photopolymer, mask and then light source?
[06:04:27] <CaptHindsight> is the mask right on top of the polymer, in contact with it?
[06:04:40] <zeeshan> yep
[06:04:53] <CaptHindsight> whats the mask material?
[06:05:06] <zeeshan> .050 thick acrylic
[06:05:12] <zeeshan> i just cut it on the laser cutter
[06:05:17] <CaptHindsight> inch?
[06:05:19] <zeeshan> yea
[06:05:41] -!- ve7it has quit [Remote host closed the connection]
[06:05:47] <CaptHindsight> is the mask on only one side of the film?
[06:06:09] <zeeshan> yea
[06:06:21] <zeeshan> do you think i can air brush this photopolymer?
[06:07:07] <CaptHindsight> http://openlunchbox.com/smf/index.php?topic=40.msg94#msg94
[06:07:17] <CaptHindsight> 2nd link
[06:07:30] <CaptHindsight> yeah, you can air brush it
[06:07:44] <CaptHindsight> i think I kept the viscosity low
[06:07:53] <zeeshan> can i mix it with some solvent
[06:07:55] <zeeshan> to thin it even more?
[06:08:26] <CaptHindsight> it's 100% solids right now, 0 solvent
[06:08:30] <zeeshan> ah
[06:09:09] <CaptHindsight> if you introduce an organic solvent then you'll need to remove all the solvent before exposure/curing
[06:09:10] <zeeshan> ill go through these papers tomorrow
[06:09:12] <zeeshan> really sleep :p
[06:09:15] <zeeshan> ah
[06:09:25] -!- tronwizard has quit [Ping timeout: 264 seconds]
[06:09:39] <CaptHindsight> 405nm laser and inverse microscope
[06:10:42] <CaptHindsight> I can also send you functional solvent
[06:11:12] <zeeshan> i think i have enough of this
[06:11:17] <zeeshan> to try to spray it with an air brush
[06:11:18] <zeeshan> and see what happens
[06:11:20] <zeeshan> if its clogging up
[06:11:30] <zeeshan> then ill look into a solvent
[06:11:31] <CaptHindsight> it won't clog
[06:12:03] <CaptHindsight> it won't dry until you expose it
[06:12:05] <zeeshan> okay then air brushing will definitely be the best technique!
[06:12:11] <zeeshan> will be a bit hard in the dark :)
[06:12:23] <CaptHindsight> not dark just not in the window
[06:12:33] <zeeshan> wait what?
[06:12:37] <zeeshan> i can have the room lights on?
[06:12:43] <zeeshan> i've been doing this stuff in a complete dark room
[06:12:44] <zeeshan> haha
[06:13:05] <CaptHindsight> depends on the lights, might be few minutes might be hours until it cures
[06:13:09] -!- tronwizard [tronwizard!tronwizard@24.229.167.126.res-cmts.sm.ptd.net] has joined #linuxcnc
[06:13:18] <zeeshan> i guess i can test a small amount of it
[06:13:32] <CaptHindsight> i mix it with my high bay lights on 24 ft away
[06:14:02] <CaptHindsight> keep it away from sunlight
[06:14:20] <CaptHindsight> just a drop on a piece of paper
[06:14:32] <CaptHindsight> it will shift color after cure
[06:14:44] <CaptHindsight> yellow/orange to white
[06:15:05] <zeeshan> yea
[06:15:14] <zeeshan> i noticed that :)
[06:15:22] <CaptHindsight> magic
[06:15:36] <zeeshan> hehe
[06:16:07] <CaptHindsight> does it adhere well to the plastic?
[06:16:48] <zeeshan> seems like it
[06:16:52] <zeeshan> i cant scratch it off the smp
[06:16:59] <CaptHindsight> great
[06:17:11] <zeeshan> its a hell of a lot better than the spray paint
[06:17:11] <CaptHindsight> is that a polyester?
[06:17:12] <zeeshan> we've been using
[06:17:20] <zeeshan> no i think its some urethane
[06:17:33] <zeeshan> they are very tight lipped about the composition
[06:17:38] <CaptHindsight> ah ok, thats a blend of epoxy
[06:18:04] -!- adam3999 has quit [Ping timeout: 272 seconds]
[06:18:05] <CaptHindsight> and 2 monomers
[06:18:22] <CaptHindsight> I think IBOA and TPGDA
[06:18:38] <zeeshan> okay mr chemist
[06:18:39] <zeeshan> :)
[06:18:57] <zeeshan> fancy terms are too big for mech eng!
[06:19:19] <CaptHindsight> initials for name 57 characters long
[06:20:17] <CaptHindsight> nope ethoxylated trimethyolpropane triacrylate
[06:21:07] -!- swingley has quit [Ping timeout: 245 seconds]
[06:23:33] <CaptHindsight> http://ma.ecsdl.org/content/MA2012-02/59/3990.full.pdf#page=1&view=FitH
[06:23:52] -!- mttr has quit [Ping timeout: 240 seconds]
[06:23:56] <CaptHindsight> you might be able to find all these parts in your labs
[06:25:21] -!- jerryitt has quit [Quit: Connection closed for inactivity]
[06:25:37] -!- micges has quit [Ping timeout: 264 seconds]
[06:45:43] -!- HeXiLeD has quit [Ping timeout: 252 seconds]
[06:48:39] -!- zlog has quit [Ping timeout: 252 seconds]
[06:49:06] -!- Tom_itx has quit [Ping timeout: 272 seconds]
[06:51:19] -!- zlog [zlog!~zlog@ip68-102-196-57.ks.ok.cox.net] has joined #linuxcnc
[06:54:03] -!- The_Ball has quit [Remote host closed the connection]
[06:56:14] -!- tjtr33 has quit [Remote host closed the connection]
[07:01:09] -!- TTN has quit [Remote host closed the connection]
[07:07:12] -!- ashcan [ashcan!~robert@navsoft.plus.com] has joined #linuxcnc
[07:20:11] -!- HeXiLeD has quit [Ping timeout: 252 seconds]
[07:22:40] -!- swingley has quit [Ping timeout: 272 seconds]
[07:32:17] -!- dan2k3k4 has quit [Ping timeout: 252 seconds]
[07:34:00] -!- Miner_48er has quit [Quit: Leaving]
[07:34:30] -!- Praesmeodymium|2 [Praesmeodymium|2!~kvirc@c-24-21-129-95.hsd1.or.comcast.net] has joined #linuxcnc
[07:34:51] -!- Praesmeodymium has quit [Ping timeout: 252 seconds]
[07:43:22] <MacGalempsy_> makin progress is fun!
[07:43:40] <MacGalempsy_> blew the interior LED...
[07:46:25] Praesmeodymium|2 is now known as Praesmeodymium
[07:54:47] -!- Deejay [Deejay!~Deejay@unaffiliated/dj9dj] has joined #linuxcnc
[07:55:29] <Deejay> moin
[08:04:27] -!- Demiurge has quit [Ping timeout: 245 seconds]
[08:08:18] <MacGalempsy_> hi deejay
[08:11:03] -!- cmorley [cmorley!~chris@S0106204e7f8c229b.no.shawcable.net] has joined #linuxcnc
[08:12:51] -!- quiqua has quit [Quit: quiqua]
[08:15:32] -!- quiqua has quit [Client Quit]
[08:20:22] -!- zlog has quit [Ping timeout: 240 seconds]
[08:20:58] -!- rob_h [rob_h!~robh@90.212.252.1] has joined #linuxcnc
[08:21:22] <renesis> macgalempsy_: blowing LEDs is fun!
[08:21:27] <renesis> its just so final
[08:22:47] -!- swingley has quit [Ping timeout: 245 seconds]
[08:23:01] <MacGalempsy_> it was supposed to get 24v but it got 110
[08:23:07] -!- zlog [zlog!~zlog@ip68-102-196-57.ks.ok.cox.net] has joined #linuxcnc
[08:23:12] <renesis> http://www.allelectronics.com/make-a-store/item/1n914/switching-diode/1.html
[08:23:17] <renesis> holy fuck those went up
[08:23:35] <renesis> i remember they would gives me hundreds on tape for a few dollars
[08:23:41] <MacGalempsy_> oh well, I will order a lower power one
[08:24:19] <renesis> so i had a big roll of those glass diodes, if you gives them like half an amp they turn in nice warm light LEDs
[08:24:29] <renesis> and then they die, but who cars because you have hundreds
[08:24:37] <renesis> its like bubble wrap
[08:24:45] <MrSunshine> renesis: welly ou stil do if you buy 100 ? :P
[08:24:48] <MrSunshine> thats 5$
[08:25:08] -!- sumpfralle [sumpfralle!~lars@erina.opennet-initiative.de] has joined #linuxcnc
[08:25:18] <renesis> they were way cheaper, i think they had a huge spool at the time
[08:25:43] <renesis> like, diodes per penny, not pennies per diode
[08:27:35] <archivist> look for 1n4148
[08:27:54] <archivist> which is near enough the same
[08:28:04] <renesis> well i think thats why 1n914 was cheap, obsoleted p/n
[08:28:42] <renesis> or maybe was in store price
[08:28:51] <archivist> they see $ when stuff becomes r@re
[08:29:07] <renesis> anyway 1n914 is better to use because porsche 914 are awesome
[08:29:11] <MacGalempsy_> renesis: you drive del puerto canyon yet:
[08:29:12] <MacGalempsy_> ?
[08:29:13] <renesis> thats my professional opinion
[08:29:23] <renesis> macgalempsy_: i might in a week
[08:29:44] <renesis> i shouldnt, its prob 3x the gas and time compared to cutting across on the 156
[08:30:18] <MacGalempsy_> its like disneyland, go once for the hell of it
[08:30:19] <renesis> but a friend passed away and am going to his life celebration party thing, and he would have been down with me driving that way
[08:30:28] <archivist> I wonder how many 914/4148s I have fitted in pcbs and soldered
[08:30:30] <renesis> i should take the 5, im going to valencia
[08:31:50] <renesis> and maybe itll rub out my front tires a bit
[08:32:21] <renesis> since i only drive highway, after alignment, my rears seem to be wearing same or faster than fronts
[08:32:34] <renesis> silly fwd car, youre not supposed to do that
[08:33:45] <renesis> everything even, like 15k on falkens and way more than half tread remaining (i get 30k out of them at best)
[08:33:52] <MacGalempsy_> two major obsticles. one is it is open range, if your car is too low it may be difficult to get over the cattle gaurds.
[08:34:10] <MacGalempsy_> two, it goes to one lane in many places, so beware for head ons
[08:34:18] <renesis> its not lowered, its bit low tho
[08:34:29] <renesis> right im used to that type of stuff
[08:35:10] <renesis> i dont drive faster than i can see, usually even on roads im pretty familiar with
[08:35:26] -!- akex2 [akex2!uid58281@gateway/web/irccloud.com/x-zcngkmqojbhzemat] has joined #linuxcnc
[08:35:59] <renesis> macgalempsy_: so it hits the 130 i think and you pass an observatory and power out in lower SJ, right?
[08:36:09] <renesis> er, pop out
[08:37:38] <renesis> watching youtubes
[08:38:13] <MacGalempsy_> yeah\
[08:38:25] <renesis> wow gonna be gorgeous mid spring
[08:38:33] <MacGalempsy_> if you take a right at the fork, it will pop you out in livermore
[08:39:31] <renesis> seems like latigo canyon or the very end of mulholland, just more
[08:42:30] <renesis> https://www.youtube.com/watch?v=m4a4GgwVv0M&t=4m
[08:42:42] <renesis> macgalempsy_: those are the cattle guards?
[08:43:33] <renesis> my car should do that fine
[08:44:37] -!- Tom_itx [Tom_itx!~Tl@unaffiliated/toml/x-013812] has joined #linuxcnc
[08:45:15] <renesis> macgalempsy_: what ive seen so far, road is maintained better than some of the stuff in santa barbara
[08:51:01] <MacGalempsy_> yeah those are cattle gaurds
[08:51:20] <MacGalempsy_> they are at the entry and about half way out. its been about 10 years since I been there last
[08:52:48] <Tecan> awe yeah...
http://www.thingiverse.com/thing:44200 need one of these for my toothpaste
[08:54:30] <MacGalempsy_> Tecan: why not just use the edge of the tooth brush and the sink?
[08:54:55] <renesis> he can do that when the tube roller breaks
[08:55:29] <renesis> macgalempsy_: thanks man, i think im gonna do it
[08:55:48] -!- Komzzpa|worrk has quit [Read error: Connection reset by peer]
[08:55:52] <MacGalempsy_> the first time I did it was pre-internet
[08:55:53] <renesis> looks okay dont think itll hurt the car and that was my only concern
[08:56:03] <MacGalempsy_> weekday there was noone out there
[08:56:43] <MacGalempsy_> there use to be a couple of places between 99 and 5 that you could limit out
[08:57:27] <renesis> i dont like getting fast around the ag farms
[08:58:08] <MacGalempsy_> all those portagees love that shisa
[08:58:11] <renesis> like, grazing farms you can see into the fields, plants im always worried tractor or some worker gonna pop out
[08:58:48] -!- TTN [TTN!~TTN@27.110.122.139] has joined #linuxcnc
[08:58:48] -!- TTN has quit [Changing host]
[08:58:48] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[08:58:50] <renesis> but like, canyons and rolling hills with cows ill get into it
[08:59:08] <renesis> the cows dont move so fast
[08:59:10] <renesis> or at all
[09:01:47] <MacGalempsy_> yeah they are sucky. also strawberry pass which is the only one that goes over the sierras between tahoe and yosemite
[09:01:47] -!- anarchos2 has quit [Read error: Connection reset by peer]
[09:02:13] -!- anarchos2 [anarchos2!~mike@S010600259ce59399.vn.shawcable.net] has joined #linuxcnc
[09:02:23] <MacGalempsy_> that one in a weekday during the summer is pretty awesome, but you find yourself going slow because the views are so awesome
[09:02:53] <renesis> oh man i trip out when i passenger on roads i like driving
[09:03:02] <renesis> so much shit i dont see
[09:04:01] <renesis> this guy gets over the yellow line too much
[09:07:01] <MacGalempsy_> there is a road that goes between 5 and 1 through the marble mountain wilderness, its pretty tite
[09:07:27] -!- ashcan has quit [Quit: Ex-Chat]
[09:10:02] -!- BellinganRoy [BellinganRoy!~Bellingan@host228-109-static.242-95-b.business.telecomitalia.it] has joined #linuxcnc
[09:10:02] <MacGalempsy_> speaking of driving, I got to head to OKC tomorrow...
[09:10:10] <MacGalempsy_> 3.5 hrs down the drain
[09:10:13] <MacGalempsy_> each way
[09:10:53] -!- Camaban has quit [Read error: Connection reset by peer]
[09:11:42] -!- Camaban has quit [Read error: Connection reset by peer]
[09:12:32] -!- md-2 has quit [Quit: Leaving...]
[09:15:10] <MacGalempsy_> renesis: skyline blvd dropping into Santa Cruz is good too
[09:16:32] -!- XXCoder [XXCoder!~XXCoder@c-24-19-85-77.hsd1.wa.comcast.net] has joined #linuxcnc
[09:18:00] <renesis> too out of the way unless i was coming from OR or something near the coast
[09:18:20] <renesis> wow nice image on wiki, tho
[09:19:48] -!- The_Ball [The_Ball!~ballen@c114-77-179-73.hillc3.qld.optusnet.com.au] has joined #linuxcnc
[09:20:07] <XXCoder> welcome to deaf news
http://picpaste.com/deafnews.jpg
[09:20:12] <XXCoder> I have seen worse
[09:20:40] <MacGalempsy_> lolk
[09:20:58] <XXCoder> it tend to be fine but once a while.. :P
[09:22:48] <MacGalempsy_> this Dan Gelbert series is great
[09:23:28] <MacGalempsy_> I think waterjets give him a chubby because he can't go 5 minutes without talking about them
[09:23:34] -!- swingley has quit [Ping timeout: 245 seconds]
[09:24:33] -!- The_Ball has quit [Ping timeout: 265 seconds]
[09:25:48] -!- The_Ball [The_Ball!~ballen@c114-77-179-73.hillc3.qld.optusnet.com.au] has joined #linuxcnc
[09:25:51] <XXCoder> lol
[09:27:09] <MacGalempsy_> bbiab
[09:30:14] -!- The_Ball has quit [Ping timeout: 246 seconds]
[09:37:28] -!- MacGalempsy_ has quit [Ping timeout: 255 seconds]
[09:38:12] -!- MacGalempsy [MacGalempsy!~quassel@ip72-204-45-74.fv.ks.cox.net] has joined #linuxcnc
[09:42:52] -!- MacGalempsy has quit [Ping timeout: 255 seconds]
[09:43:17] -!- The_Ball [The_Ball!~ballen@c114-77-179-73.hillc3.qld.optusnet.com.au] has joined #linuxcnc
[09:45:18] -!- MacGalempsy [MacGalempsy!~quassel@ip72-204-45-74.fv.ks.cox.net] has joined #linuxcnc
[09:55:55] -!- skunkworks has quit [Ping timeout: 255 seconds]
[10:11:53] -!- SpeedEvil has quit [Ping timeout: 246 seconds]
[10:13:23] -!- SpeedEvil [SpeedEvil!~quassel@tor/regular/SpeedEvil] has joined #linuxcnc
[10:25:25] -!- skunkworks [skunkworks!~skunkwork@68-115-41-210.static.eucl.wi.charter.com] has joined #linuxcnc
[10:26:19] -!- paideia [paideia!~paideia@194.210.255.220] has joined #linuxcnc
[10:30:32] -!- maximilian_h has quit [Remote host closed the connection]
[10:48:58] -!- RyanS has quit [Ping timeout: 252 seconds]
[10:53:12] -!- MacGalempsy has quit [Remote host closed the connection]
[10:54:47] -!- RyanS [RyanS!~ryanstruk@ppp157-163.static.internode.on.net] has joined #linuxcnc
[10:58:57] -!- akex2 has quit [Quit: Connection closed for inactivity]
[11:25:15] -!- swingley has quit [Ping timeout: 256 seconds]
[11:34:27] -!- Tecan has quit [Ping timeout: 245 seconds]
[11:38:40] <Swapper> anyhone have any thaughts on this error ?
[11:38:40] <Swapper> /altivar-vfd-comp/atv# make
[11:38:40] <Swapper> The required program "comp" could not be found
[11:38:40] <Swapper> The required program "comp" could not be found
[11:38:41] <Swapper> Makefile:7: *** Required files for building components not present. Install emc2-dev. Stop.
[11:39:08] <Swapper> i have tried with halcompile but it dosnt support .c files
[11:39:11] <Swapper> in userspace
[11:39:42] <archivist> did you install the dev stuff as the last error
[11:40:07] <Swapper> i installed linuxcnc-dev - PC based motion controller for real-time Linux
[11:40:28] <Swapper> since emc2-dev is "old" ?
[11:41:12] <Swapper> if i run the precompiled binary i get this error: ./atv_vfd
[11:41:13] <Swapper> ./atv_vfd: error while loading shared libraries: libemchal.so.0: cannot open shared object file: No such file or directory
[11:41:24] <archivist> iirc some others have had trouble using comp, it may have moved or you forgot the ./something to set the environment
[11:47:25] -!- akex2 [akex2!uid58281@gateway/web/irccloud.com/x-nwjrniqckgsdajse] has joined #linuxcnc
[11:50:54] <Swapper> extremly vague info on how to get these module running
[11:57:50] <archivist> I cannot help by looking at docs etc as my internet is half dead
[11:58:02] <Swapper> yea np
[11:58:08] <Swapper> think ill make a post on the forums
[11:58:12] <Swapper> this seems weerd
[11:58:16] <archivist> strange that IRC is running but not html
[11:58:17] <Swapper> and oldish
[11:59:52] <skunkworks> it is halcompile now depending on your version
[11:59:57] -!- Komzpa|work has quit [Read error: Connection reset by peer]
[12:00:38] <skunkworks> 'halcompile'
[12:00:58] <Swapper> cant use halcompile on .c user comps
[12:01:00] <Swapper> its says
[12:01:28] <Swapper> the "manual" for the vfd comp says i should compile it with "make"
[12:01:33] <skunkworks> ah
[12:02:35] <Swapper> The required program "comp" could not be found
[12:02:35] <Swapper> The required program "comp" could not be found
[12:02:35] <Swapper> Makefile:7: *** Required files for building components not present. Install emc2-dev. Stop.
[12:02:40] <Swapper> and there i get that
[12:02:52] -!- paideia has quit [Ping timeout: 240 seconds]
[12:04:00] <Swapper> but its hard to install emc2-dev when all is ref to linux-cnc dev nowadys
[12:05:15] <Swapper> this is the files i got
http://git.mah.priv.at/gitweb?p=emc2-dev.git;a=commit;h=04e08b52b28732b4bf2fb0dd7283fe7496741167
[12:05:44] <Swapper> any "Martin Kaplan" here ? :)
[12:25:59] -!- swingley has quit [Ping timeout: 252 seconds]
[12:38:16] -!- sumpfralle has quit [Ping timeout: 244 seconds]
[12:38:58] -!- BellinganRoy has quit [Quit: Konversation terminated!]
[12:49:16] -!- TTN has quit [Quit: gnight :)]
[12:55:08] <_methods> heh sweet just scored a 18x24x2 surface plate for free
[12:56:49] <_methods> oh it's 18x24x4 with side wings
[12:57:17] <_methods> didn't see that the bottom was hidden by the stand
[13:01:10] <Swapper> nice one
[13:04:08] <SpeedEvil> :)
[13:04:35] <SpeedEvil> 'just move it, I don't care' ?
[13:04:44] <SpeedEvil> Actually - that's not that heavy
[13:06:13] <_methods> yeah it's in bad shape but i don't care
[13:06:31] <_methods> i'm just going to use it in the garage
[13:07:17] <SpeedEvil> Surface plates make great anvils.
[13:07:26] <_methods> yeah someone used it for that
[13:07:31] <SpeedEvil> Sigh
[13:07:34] <_methods> one corner is busted off
[13:07:50] <_methods> i guess some welders got ahold of it
[13:08:45] <_methods> god bless their simple souls
[13:09:12] <_methods> i'm pretty sure to them a granite surface plate is just a rock
[13:09:33] <_methods> so smashing stuff against it "just makes sense"
[13:10:01] <_methods> they are right though because it is a rock
[13:12:37] <_methods> and micrometers are just tiny c-clamps
[13:15:29] -!- b_b has quit [Changing host]
[13:22:48] -!- miss0r|shop [miss0r|shop!~miss0r@87-59-179-253-dynamic.dk.customer.tdc.net] has joined #linuxcnc
[13:26:10] <miss0r|shop> turning down the flange of a ballnut. This is hardened alot :)
[13:26:31] amnesic_away is now known as amnesic
[13:26:50] -!- swingley has quit [Ping timeout: 272 seconds]
[13:28:18] -!- FinboySlick [FinboySlick!~shark@74.117.40.10] has joined #linuxcnc
[13:32:57] <Swapper> i chopped mine off with a angle grinder
[13:34:34] <Swapper> guess you havnt find any smaller ones that you where looking for?
[13:34:38] <miss0r|shop> I'm afraid of the heat, so I am taking it slowly with cabide inserts
[13:35:15] <miss0r|shop> well. I DID find something close to what I was looking for, but they were massively expensive, so I went for the cheap solution, and just decided to machine them my self.
[13:35:27] <miss0r|shop> Did you get my PM about the microstepping?
[13:35:46] -!- md-2 has quit [Remote host closed the connection]
[13:35:56] <Swapper> yea i forgot tho awnser
[13:35:58] <Swapper> nice one
[13:36:04] <Swapper> atleast its working now ?
[13:36:12] <miss0r|shop> i'm not sure it is nice :)
[13:36:29] <Swapper> no i where sarcastic :)
[13:36:30] <miss0r|shop> well, the Z-axis is working now. but I am a bit bummed about the solution, I realy didn't want to do microstepping.
[13:36:42] <Swapper> why not ?
[13:36:45] <miss0r|shop> sarcasm doesn't always translate on IRC
[13:36:46] <Swapper> step speed ?
[13:36:56] <Swapper> no i guess it dont
[13:36:58] <miss0r|shop> well, every time I do microstepping I loose torque
[13:37:11] <Swapper> get higer voltage :)
[13:37:44] <miss0r|shop> sure sure... now I have this. I want this to work. and, I think I can settle at 70%tq.
[13:38:02] <miss0r|shop> I think the z-axis can benchpress me without problems
[13:39:50] <miss0r|shop> I am just a bit worries about the X&Y axis - theres a lot of friction in this type of table
[13:41:27] <miss0r|shop> however, while waiting for the ballscrews to arraive, I managed to complete my home cinema. 109" widescreen with a 1080P LED projector and full surround :)
[13:41:34] <miss0r|shop> That made the misses happy ;)
[13:45:23] <Swapper> hehe real nice
[13:52:01] <Swapper> get some kickers and it will be a real experiance :)
[13:52:37] -!- md-2 has quit [Ping timeout: 264 seconds]
[13:54:00] -!- mhaberler [mhaberler!~mhaberler@bigmac.stiwoll.mah.priv.at] has joined #linuxcnc
[13:54:21] <miss0r|shop> I have two in there. Also, some time next week, 4x real cinema chairs will arraive - I bought them used from a cinema getting new ones. (I took 4 from the left side of the front row - looks new)
[13:58:57] -!- akex2 has quit [Quit: Connection closed for inactivity]
[14:00:26] -!- syyl_ [syyl_!~sg@p200300632C236D40B1377ECD30F15048.dip0.t-ipconnect.de] has joined #linuxcnc
[14:08:12] -!- pandeiro has quit [Read error: Connection reset by peer]
[14:14:05] -!- PetefromTn_ [PetefromTn_!~IceChat9@75-136-60-251.dhcp.jcsn.tn.charter.com] has joined #linuxcnc
[14:14:24] -!- furrywolf [furrywolf!~randyg@70.6.108.13] has joined #linuxcnc
[14:15:42] <furrywolf> I hate daylight savings.
[14:23:09] <SpeedEvil> I hate daylight.
[14:23:22] <SpeedEvil> (not really)
[14:24:06] <Swapper> miss0r|shop: Sounds like a real nice rig
[14:24:13] <Swapper> in basment or ?
[14:28:53] amnesic is now known as amnesic_away
[14:32:45] -!- tjtr33 [tjtr33!~tjtr33@d47-69-239-176.try.wideopenwest.com] has joined #linuxcnc
[14:33:14] -!- amiri has quit [Read error: Connection reset by peer]
[14:34:00] <furrywolf> SpeedEvil: I like daylight. I also like when daylight occours at the same time every day.
[14:34:40] <tjtr33> !later Cromaglious your 'touch gauge' looks like an LVDT . if so, its a better search term.
[14:34:41] <the_wench> will tell Cromaglious when he/she joins next
[14:38:47] -!- anth0ny has quit [Quit: anth0ny]
[14:42:11] -!- theorbtwo has quit [Remote host closed the connection]
[14:43:38] <sliptonic> When I launch linuxcnc (debian wheezy) axis always starts up hidden. Even with a .axisrc file specificying location, I have to alt-tab to get it to show.
[14:45:35] <sliptonic> If I load scaragui from the hal file, it (scaragui) shows up immediatly and axis loads a couple seconds later but is hidden.
[14:46:04] -!- zbychuk [zbychuk!~zbychuk@77-255-85-16.adsl.inetia.pl] has joined #linuxcnc
[14:46:06] <furrywolf> broken window manager?
[14:46:59] <sliptonic> Same behaviour on two different machines with wheezy.
[14:47:06] -!- zbychuk [zbychuk!~zbychuk@77-255-85-16.adsl.inetia.pl] has parted #linuxcnc
[14:48:32] -!- theorbtwo [theorbtwo!~theorb@cpc3-swin16-2-0-cust28.3-1.cable.virginm.net] has joined #linuxcnc
[14:52:00] <archivist> my web is dead grrr, can someone do a traceroute www.collection.archivist.info -p80
[14:52:03] -!- swingley has quit [Remote host closed the connection]
[14:52:20] <archivist> I think it dies in the ISP
[14:53:59] <tjtr33> 171.697ms to 10.204.64.1
[14:55:07] <Rab> Seems like it dies after 213.120.178.133, is that what you wanted?
[14:55:28] <malcom2073> The server itself pings, but I'm on windows so I can't tracert on port 80
[14:56:26] <archivist> outgoing when testing p80 I see it die inside BT at 192.72.31.73
[14:57:05] <archivist> seems there is a port 80 block, irc and all the other ports work ok
[14:57:24] <skunkworks> hosting porn again?
[14:57:36] <archivist> I meant 194.72.31.73
[14:57:43] <archivist> I wish
[14:58:05] <archivist> I bet their bill paying nag is faulty
[14:58:49] <archivist> been to another site and rattled the fault contact on their messaging toy but got nowhere
[14:59:18] -!- kwallace has quit [Ping timeout: 272 seconds]
[15:00:43] -!- Roguish [Roguish!~chatzilla@c-50-143-183-159.hsd1.ca.comcast.net] has joined #linuxcnc
[15:04:31] micges_ is now known as micges
[15:05:04] <furrywolf> Rab: you're hitting traceroute's default limit of 30 hops.
[15:05:34] <furrywolf> although that is also the last hop that answers. lol
[15:05:58] * furrywolf had to add a -m100
[15:06:20] <archivist> with and without p80 I get different results for www.google.co.uk
[15:06:44] <archivist> frustrating
[15:07:52] -!- Tecan [Tecan!~fasdf@unaffiliated/unit41] has joined #linuxcnc
[15:09:32] <furrywolf> lol, I tried doing a tcptraceroute, and my isp intercepted it. I hate my isp.
[15:10:04] <furrywolf> brb
[15:13:08] <JT-Shop> /me just unloaded 600lbs of steel... glad I didn't order it all at once
[15:14:21] <Rab> furrywolf, 213.120.178.133 is hop 19 for me.
[15:15:08] * SpeedEvil imagines JT-Shop in a powerloader.
[15:15:46] <archivist> I imagine he cheated with a loading shovel
[15:15:47] <SpeedEvil> https://pbs.twimg.com/media/B_riYuiUYAIhxto.jpg
[15:16:01] <SpeedEvil> Ideal shop equipment.
[15:16:11] <SpeedEvil> (the exoskeleton, not the alien)
[15:17:09] <jthornton> all by hand
[15:17:19] <jthornton> I had them cut the 20' pieces in half
[15:18:13] -!- theorbtwo has quit [Remote host closed the connection]
[15:19:33] -!- eFuchs_mobil [eFuchs_mobil!~voodoo@2001:4dd0:ff00:8d54:e455:e1ff:fec1:bc10] has joined #linuxcnc
[15:20:45] <archivist> interesting it stopping at 213.120.178.133 as 213.120.178.141 is the first ip I see outbound
[15:22:35] <Rab> Is that your gateway?
[15:23:20] <archivist> my public fixed ip is 81.149.189.98
[15:23:37] <Rab> Could it be that they're intentionally blocking port 80? Copyright claim by envious fellow archivists?
[15:23:49] <archivist> a plain ping should work to that ip
[15:24:04] <Rab> I can ping that.
[15:24:34] <archivist> I have rattled a support person but got nowhere
[15:24:53] <archivist> "it must be a firewall"
[15:24:56] <_methods> if they're hitting you with DMCA you should have gotta a notice
[15:25:28] <archivist> and the support monkey would know
[15:25:32] <archivist> or should
[15:25:37] <_methods> yeah
[15:31:29] <miss0r|shop> swapper; yes, in my basement. I have a dedicated man-cave. I even placed network and power plugs in the sealing, so that when friends come over for some computer playing, I just set up a couple of tables, and connect them above ;)
[15:31:50] <Swapper> Total geekout :)
[15:31:54] <Swapper> wish i had a basment
[15:32:13] <archivist> loft?
[15:32:28] <Swapper> ?
[15:32:49] <archivist> in the apex of the roof
[15:33:02] <miss0r|shop> Swapper; yeah. it is very nice. but now that I have the right equipment for the nice computer party and cinema ect. I don't have the time to use it ;)
[15:33:27] <Swapper> yea isnt that allways the case
[15:33:32] <Rab> archivist, you could contact accounts and politely ask if they will credit you for the present service outage...might see more action.
[15:33:47] <miss0r|shop> archivist: no, in the basement
[15:34:08] <archivist> rab except they charge the earth to phone them
[15:34:28] <miss0r|shop> Swapper: I'll snap a photo at some point to show you ;)
[15:34:33] <Swapper> do that
[15:34:45] <Swapper> man i have surfed on the home cinema sites
[15:34:45] <cpresser> what would be the easiest way to have a hal-pin with a constant bit-value?
[15:34:47] <archivist> miss0r|shop, I was prompting Swapper with other usable space :)
[15:34:59] <cpresser> the "constant" component only ouputs a float
[15:35:06] <Swapper> ah, my loftspace is bearely so i can crawl there
[15:35:18] -!- Simonious [Simonious!~sgoble@h75-100-220-172.pqlkmn.broadband.dynamic.tds.net] has joined #linuxcnc
[15:35:29] <Swapper> like 80cm free at apiex
[15:35:31] <Swapper> apex
[15:35:49] <Swapper> miss0r|shop: what projectors are hot right now?
[15:36:10] <archivist> those with incandescents
[15:36:18] * archivist ducks
[15:36:23] <miss0r|shop> Swapper: I have no idea... I bought this one:
http://www.cinema-shop.dk/crea-x2000px-projektor-p-1953.html?osCsid=682eiqggiheifnk4i2hrde88h6
[15:36:49] <miss0r|shop> I like the idea of a good LED projector; if you can make the room completely dark
[15:37:00] <Swapper> i have 1 space for a projector but it would be best if i could back project on a scrren
[15:37:10] <miss0r|shop> This one can do that
[15:37:26] <miss0r|shop> But I think they all can
[15:37:40] <Swapper> yea, its more of the distance to screen
[15:37:45] <Swapper> the throw distance
[15:37:46] <jdh> do you use a screen?
[15:38:18] <miss0r|shop> jdh: yes, a nice 109" with automatic retraction
[15:38:22] <miss0r|shop> Swapper:
http://www.cinema-shop.dk/proxima-us1275-projektor-p-1914.html
[15:38:50] <miss0r|shop> Swapper: 0.7m for 60-100"
[15:38:59] <Swapper> bummer is we got loads of windows so light might be a problem
[15:39:10] <Swapper> you have all dark ?
[15:39:32] <miss0r|shop> Swapper: I have a few windows in there, but when I draw the blinds, it is all good
[15:39:37] <Swapper> kk
[15:39:54] <furrywolf> Rab: it was hop 30 here, at which point traceroute gave up without trying any further.
[15:41:24] <tjtr33> try blackout curtains (spcl matl) and ultra short throw projectors ( search term )
[15:41:32] <furrywolf> bbl, time for work
[15:41:37] -!- patrickarlt has quit [Client Quit]
[15:43:17] amnesic_away is now known as amnesic
[15:43:36] -!- patrickarlt has quit [Remote host closed the connection]
[15:44:21] <Swapper> looks doable with a real short throw proj
[15:44:39] <Swapper> then a nice backprojection automatic rollup screen
[15:49:52] -!- furrywolf has quit [Ping timeout: 245 seconds]
[15:51:08] -!- theorbtwo [theorbtwo!~theorb@cpc3-swin16-2-0-cust28.3-1.cable.virginm.net] has joined #linuxcnc
[16:01:42] -!- PetefromTn_ has quit [Quit: I'm Outta here!!]
[16:10:18] -!- koo5 [koo5!~sirdancea@236.152.broadband3.iol.cz] has joined #linuxcnc
[16:10:37] -!- phantoneD has quit [Ping timeout: 264 seconds]
[16:11:27] -!- phantoxeD [phantoxeD!destroy@a89-152-21-144.cpe.netcabo.pt] has joined #linuxcnc
[16:11:39] -!- steves_logging has quit [Ping timeout: 244 seconds]
[16:24:37] -!- theorbtwo has quit [Remote host closed the connection]
[16:26:37] -!- eFuchs_mobil has quit [Quit: No Ping reply in 180 seconds.]
[16:27:42] -!- eFuchs_mobil [eFuchs_mobil!~voodoo@eduroam172-093.wlan.uni-ulm.de] has joined #linuxcnc
[16:29:11] -!- danylevskyi has quit [Ping timeout: 246 seconds]
[16:30:55] -!- quiqua has quit [Quit: quiqua]
[16:32:08] -!- FreezingCold [FreezingCold!~FreezingC@135.0.41.14] has joined #linuxcnc
[16:33:02] -!- dan2k3k4k5 has quit [Ping timeout: 272 seconds]
[16:34:17] -!- gonzo_nb [gonzo_nb!~gonzo@host-92-14-209-118.as43234.net] has joined #linuxcnc
[16:37:39] -!- dirty_d has quit [Disconnected by services]
[16:37:50] -!- dirty_d [dirty_d!~dirty_d@50-205-178-174-static.hfc.comcastbusiness.net] has joined #linuxcnc
[16:38:05] -!- adowning_ [adowning_!~adowning@c-76-118-118-156.hsd1.ma.comcast.net] has joined #linuxcnc
[16:38:30] <dirty_d> is this a good brand?
http://www.ebay.com/itm/SCIENTIFIC-CUTTING-TOOLS-SPTM240L-Thd-Mill-Single-Int-Ext-5-16-16-48-TPI-/331346716033?pt=LH_DefaultDomain_0&hash=item4d25cda581
[16:41:51] -!- patrickarlt has quit [Quit: Leaving...]
[16:42:52] <Rab> Never heard of them, but they seem legit:
http://www.sct-usa.com/main.asp
[16:43:40] -!- Nick001-shop [Nick001-shop!~chatzilla@50-32-101-10.adr01.dlls.pa.frontiernet.net] has joined #linuxcnc
[16:45:49] <dirty_d> no reason i cant use it to thread larger diamters right?
[16:45:51] <dirty_d> like even 1"
[16:46:24] <dirty_d> as long as the threads dont need to be deeper than it can cut
[16:46:33] <SpeedEvil> sure
[16:46:43] <SpeedEvil> And you can keep speeds/feeds sane
[16:46:46] <dirty_d> yea
[16:49:22] <dirty_d> id just go real slow and take light cuts i guess
[16:49:36] <dirty_d> id be afraid to break it
[16:54:46] <SpeedEvil> I was considering earlier really stupid ways to thread.
[16:55:00] <SpeedEvil> Involving sinker EDM with allthread
[16:59:29] -!- gonzo_ has quit [Read error: Connection reset by peer]
[16:59:52] <dirty_d> sounds complicated
[16:59:52] -!- theorbtwo [theorbtwo!~theorb@cpc3-swin16-2-0-cust28.3-1.cable.virginm.net] has joined #linuxcnc
[16:59:52] -!- nerdfiles has quit [Ping timeout: 245 seconds]
[16:59:52] -!- logger[psha] has quit [Ping timeout: 240 seconds]
[17:01:09] -!- logger[psha] [logger[psha]!~loggerpsh@195.135.238.205] has joined #linuxcnc
[17:01:30] -!- gonzo_ [gonzo_!~gonzo_@host-92-14-209-118.as43234.net] has joined #linuxcnc
[17:05:43] -!- Nick001-shop has quit [Read error: Connection reset by peer]
[17:06:23] -!- FreezingCold has quit [Ping timeout: 256 seconds]
[17:08:37] -!- Camaban has quit [Ping timeout: 245 seconds]
[17:10:10] <SpeedEvil> yeah - the right way would be a nice big tap.
[17:10:20] <SpeedEvil> Or, indeed, a lathe
[17:10:38] -!- Nick001-shop [Nick001-shop!~chatzilla@50.32.152.39] has joined #linuxcnc
[17:10:47] <archivist> or use a thread mill on a milling machine
[17:10:55] <SpeedEvil> Quite
[17:11:18] <SpeedEvil> But 30mm taps are getting kinda spendy
[17:12:02] <archivist> or in stock upstairs :)
[17:12:37] -!- steves_logging [steves_logging!~Steve@wsip-70-168-134-18.dc.dc.cox.net] has joined #linuxcnc
[17:12:41] <SpeedEvil> I am 99.4% sure I don't have a 30mm tap upstairs
[17:13:34] <archivist> I have used an insert for a lathe mounted on a rotary tool on the mill to make large diameter threads
[17:13:43] <SpeedEvil> And yes.
[17:13:50] <CaptHindsight> miss0r|shop: that Cre projector is a variation of the Epson LCD projectors. The LED life is 10-100x the life of lamps. It depends on how well they cool them.
[17:13:59] <archivist> cant show picture right now!
[17:14:00] <SpeedEvil> Both a lathe and a mill are something I am also almost certain I don't have upstairs.
[17:14:47] <jdh> yet?
[17:15:05] <SpeedEvil> hopefully.
[17:15:12] <SpeedEvil> I sort-of-have bits of a decent lathe
[17:15:28] <archivist> I admit my 5 axis mill made it upstairs
[17:15:43] <SpeedEvil> But - it has no toolholder, and the chuck has a runout of about 2 degrees.
[17:15:57] <SpeedEvil> s/chuck/spindle/
[17:16:14] <archivist> regrind the jaws, toolpost grinder
[17:17:20] * SpeedEvil tries to work out if that would work for spindle.
[17:18:03] <archivist> depends what the damage is
[17:18:15] <SpeedEvil> (I think some woodturning was being attempted with a large object, and it went very wrong
[17:18:35] <archivist> maybe just best to make a new one between centres
[17:18:54] <SpeedEvil> No toolpost.
[17:19:07] <SpeedEvil> Just a very crudely made wood-turning rest
[17:19:39] <archivist> just use some packers under a bit on the topslide
[17:20:25] <SpeedEvil> There is no topslide either.
[17:21:03] <SpeedEvil> It's got the bed, tailstock, spindle, and a crudely-made toolrest for woodturning
[17:21:12] <SpeedEvil> And the aforementioned wonky spindle
[17:21:39] <archivist> some restoration required
[17:21:43] <SpeedEvil> Quite.
[17:21:54] <SpeedEvil> On the other hand - the paint is in quite good condition.
[17:22:23] -!- eFuchs_mobil has quit [Remote host closed the connection]
[17:25:54] -!- md-2 has quit [Remote host closed the connection]
[17:29:35] -!- karavanjo has quit [Ping timeout: 252 seconds]
[17:36:32] -!- skunkworks_ [skunkworks_!~chatzilla@68-115-41-210.static.eucl.wi.charter.com] has joined #linuxcnc
[17:45:00] amnesic is now known as amnesic_away
[17:56:13] -!- theorbtwo has quit [Remote host closed the connection]
[18:11:01] -!- adb [adb!~IonMoldov@2a02:120b:c3d1:5780:baac:6fff:fe67:305f] has joined #linuxcnc
[18:17:45] -!- theorbtwo [theorbtwo!~theorb@cpc3-swin16-2-0-cust28.3-1.cable.virginm.net] has joined #linuxcnc
[18:22:47] Loetmichel2 is now known as Loetmichel
[18:22:49] <andypugh> miss0r|shop: I didn’t realise I was still logged in here. Anyway, for very hard stuff I have had good results with CBN tips and very high spindle speeds. The process is called “hard turning”
https://www.youtube.com/watch?v=-VzyESxaHwY If the swarf isn’t red-hot then you aren’t spinning fast enough.
[18:25:09] <andypugh> Actually this video from Hoss shows that you don’t need super-special machinery:
https://www.youtube.com/watch?v=BU14tfjUfQU
[18:29:52] -!- danylevskyi has quit [Ping timeout: 252 seconds]
[18:35:49] <LeelooMinai> "bugger the coolling and heat expansion" method - nice:p
[18:38:06] <SpeedEvil> If you do it right, you can both turn, and case-harden the object to be turned at the same time.
[18:39:17] <LeelooMinai> And if you do it wrong, you can put the place on fire:)
[18:39:44] <SpeedEvil> Also - sheet.
[18:39:46] <SpeedEvil> HRC64
[18:39:53] <_methods> you mean if you do it right
[18:39:55] <SpeedEvil> I've got files softer than that.
[18:40:00] <_methods> if you do it wrong there won't be sparks
[18:40:17] <SpeedEvil> Blood is a good coolant
[18:41:14] <_methods> anyone tried out brl-cad?
[18:43:25] <_methods> http://brlcad.org/d/
[18:43:27] <_methods> lol
[18:43:33] <_methods> the support button
[18:43:43] <_methods> goes to 404 hehe
[18:44:33] <LeelooMinai> open-source ftw
[18:50:53] -!- monkeyisl has quit [Ping timeout: 246 seconds]
[18:54:33] -!- PetefromTn_ [PetefromTn_!~IceChat9@75-136-60-251.dhcp.jcsn.tn.charter.com] has joined #linuxcnc
[18:55:23] -!- monkeyisl [monkeyisl!~monkeyisl@115.95.237.2] has joined #linuxcnc
[18:57:10] <_Sync_> andypugh: usually on smaller machines the problem is getting the feedpressure up without chatter
[18:57:20] <_Sync_> and in the long run, you have to worry about the bed cracking
[18:57:36] <_Sync_> which apparently happened in the early days of hard turning pretty often
[18:58:11] <Rab> https://www.youtube.com/watch?v=LVODJm05plw
[18:59:07] <dirty_d> are tehre things like e-clips, but made to go around something rectangular?
[19:00:09] <Rab> Anything I've seen like that, the rectangular part had a circular groove turned in it to use a standard clip.
[19:00:11] <dirty_d> trying to figure out how to attach a fuel line directly to this
http://data.prestoliteperformance.com/documents/instructions/ACCEL/pdf/ACCEL_Injector_Specifications_151148.pdf
[19:00:26] <_methods> ugh brl-cad is as bad as openscad
[19:00:44] <dirty_d> i was thinking machine a short 3/4" brass cylinder to fit over the o-ring
[19:01:08] -!- ve7it [ve7it!~LawrenceG@S01060014d19d0b68.pk.shawcable.net] has joined #linuxcnc
[19:01:14] <dirty_d> and cut two slots on each side of the bottom of it, slide it on, then slide soem type of clip through that would engage those slots you can see in the picture
[19:02:43] -!- monkeyisl has quit [Ping timeout: 252 seconds]
[19:03:03] <tjtr33> Is it ok to use a higher than rated voltage on a dc brushed motor?
[19:03:04] <tjtr33> I have a 30V dc brushed motor, and want to use it with a 60V supply and PWM driver.
[19:03:20] <_methods> you could cross drill and slide pins through those grooves
[19:03:30] <_methods> to lock it in
[19:04:30] <tjtr33> c clip beck arnley
http://www.ebay.com/itm/like/171662522964?lpid=82&chn=ps
[19:06:14] <Rab> dirty_d, is this for production or fun? I'd just find a salvaged fuel rail for those injectors and braze a fitting or whatever onto that.
[19:07:03] <dirty_d> fun
[19:07:45] <dirty_d> tjtr33, yea tahts fine, as long as you limit the duty cycle to limit the current
[19:07:58] <dirty_d> and dont exceed the maximum rpm
[19:08:22] -!- adowning_ has quit [Ping timeout: 240 seconds]
[19:08:29] <dirty_d> heat and rpms are the only thing that will ruin a motor
[19:09:50] -!- adowning_ [adowning_!~adowning@c-76-118-118-156.hsd1.ma.comcast.net] has joined #linuxcnc
[19:14:23] <tjtr33> dirty thx yeah, seems we just choked the current setting to keep the same watts
[19:14:44] -!- sumpfralle [sumpfralle!~lars@erina.opennet-initiative.de] has joined #linuxcnc
[19:21:36] <miss0r|shop> yay! all three axis moving on the arboga! Greata success (borat voice)
[19:21:43] -!- mhaberler has quit [Quit: mhaberler]
[19:22:18] -!- TTN_ [TTN_!~TTN@27.110.122.139] has joined #linuxcnc
[19:27:29] -!- dirty_d has quit [Quit: Leaving]
[19:29:08] <tjtr33> congratulations! like this?
http://www.lathes.co.uk/arboga/
[19:29:11] -!- jack16 [jack16!~shadowjac@37-144-154-4.broadband.corbina.ru] has joined #linuxcnc
[19:30:48] <jack16> Any recommendations on Chinese endmills supplier (preferably aliexpress)? Uncoated carbide for wood, plastics and al.
[19:34:34] <miss0r|shop> yes, a u2508 exactly
[19:39:12] <_methods> jack16: probably any of them will work
[19:43:39] tjb11 is now known as tjb1
[19:45:46] -!- theorbtwo has quit [Remote host closed the connection]
[19:45:48] <PetefromTn_> any of you guys use DNLA servers on your TV?
[19:46:49] <_methods> yeah i do
[19:47:03] <_methods> i don't really like it too much cause it's hard to navigate
[19:47:08] <_methods> it's all folder based
[19:47:17] <_methods> so it can be a bit tedious
[19:47:18] <PetefromTn_> my Flatscreen has it and I am not sure how it works..
[19:47:24] <PetefromTn_> can you stream TV on it?
[19:47:26] <_methods> you need a dlna server
[19:47:40] <_methods> you can but that's a bit complicated
[19:48:18] -!- balubino has quit [Remote host closed the connection]
[19:48:23] <PetefromTn_> there is actually a lot of free online TV live streams you can watch and I was hoping to get them on the big screen LOL
[19:48:48] <_methods> best way is to use chromecast i would think
[19:48:56] <_methods> but you can stream but it's quite a pain
[19:49:06] <_methods> i got it to work kinda with my hdhomerun prime
[19:49:52] -!- sumpfralle has quit [Ping timeout: 240 seconds]
[19:50:06] <_methods> i used this thing called wallop i think
[19:50:17] <PetefromTn_> http://livetvcafe.net/videos/all/All/most_recent/all_time/ Lots of good channels actually just need to get em on the big screen heh I guess I can just stream em on the laptop and then do HDMI
[19:50:35] <_methods> yeah that or cast it
[19:50:43] <_methods> hard to beat chromecast
[19:50:47] <_methods> $35 and done
[19:50:52] <PetefromTn_> not familiar with Chromecast
[19:51:42] <_methods> well it's basically a hdmi dongle that you can cast from android to on your tv
[19:52:05] <_methods> or from yourlaptop
[19:52:44] <PetefromTn_> Ok so its hardware then... gotta check it out.
[19:52:50] <_methods> yeah cheap hardware
[19:53:00] <_methods> i made a portable monitor with one
[19:53:08] <_methods> with an old laptop monitor lol
[19:53:25] <malcom2073> I've been meaning to get one ,see how it was vs my roku which was the same price
[19:53:27] <_methods> that way if i'm workin on my car or whatever i just chromecast to my monitor
[19:53:31] <_methods> sitting on my truck lol
[19:53:40] <_methods> i have roku3 and chromecast
[19:53:44] <PetefromTn_> hey thats a good idea!
[19:53:47] <_methods> i prefer my chromecast
[19:53:54] <PetefromTn_> I have a couple big monitors around here that I am not using.
[19:54:40] <PetefromTn_> and I STILL have a big tube tv up in the bedroom I need to get gone so this might be a way to do it without having to buy another flatscreen for awhile...
[19:54:53] <PetefromTn_> I'm a freakin' caveman..
[19:55:09] <_methods> yeah i got a cordless drill battery that i hook up to the old laptop monitor and a chromecast
[19:55:20] <_methods> carry it around wherever i need it lol
[19:55:27] <_methods> it's GHETTO
[19:55:30] <_methods> but it works
[19:55:38] <PetefromTn_> hey I like Ghetto sometimes ;)
[19:56:06] <PetefromTn_> I'd love to be able to watch BBC1 and get Top Gear live etc..
[19:57:05] -!- motioncontrol [motioncontrol!~io@host116-77-dynamic.43-79-r.retail.telecomitalia.it] has joined #linuxcnc
[19:57:15] <_methods> https://www.dropbox.com/s/fixqicbplwmeyhq/2014-04-10%2019.39.38.jpg?dl=0
[19:57:25] <_methods> oops let me put them on imgur
[19:59:54] <_methods> http://imgur.com/q6kEQn5,tkjKVih,tAIiBQk,r4ZC8OR,LJOneIK,ua4eCAh,KO4nSJV,389zc5f,PZLEt5W
[20:00:51] <_methods> i need to 3d print a cover where it goes into the back and make a carrying tray for the whole assy
[20:00:59] <_methods> right now it's screwed to chunks of 2x4 lol
[20:01:46] * Loetmichel just used his "new" used notebook this way: http://www.cyrom.org/palbum/main.php?g2_itemId=15690&g2_imageViewsIndex=1
[20:02:05] <Loetmichel> ... because the replacement keyboard took a few days to arrive (today)
[20:02:22] <Loetmichel> now it looks less "ghetto":
http://www.cyrom.org/palbum/main.php?g2_itemId=15693&g2_imageViewsIndex=1
[20:02:54] <_methods> heheh
[20:03:09] <_methods> i do love some of my ghetto projects
[20:03:09] <PetefromTn_> nice
[20:03:38] <PetefromTn_> so that chromecast thing just goes into the hdmi and you plug in your laptop or phone and stream that way?
[20:03:42] -!- skunkworks has quit [Read error: Connection reset by peer]
[20:03:43] <_methods> yeah
[20:03:52] <_methods> you don't have to plug your laptop in
[20:03:54] <_methods> it's wifi
[20:04:06] <_methods> you just plug in the chromecast
[20:04:12] <_methods> and it will run off usb power
[20:04:33] <Loetmichel> _methods: looks like my new CNC mill display...
[20:04:35] <PetefromTn_> sweet
[20:04:48] <Loetmichel> http://www.cyrom.org/palbum/main.php?g2_itemId=14313
[20:04:48] <_methods> a lot of these new tv's have usb on them
[20:04:54] <PetefromTn_> do they sell those like at wally world or you get em online?
[20:04:56] <_methods> so you can feed it right from the tv
[20:05:01] <Loetmichel> http://www.cyrom.org/palbum/main.php?g2_itemId=14316 <- even made a brass frame for it
[20:05:03] <_methods> yeah they sell them all over now
[20:05:21] <_methods> Loetmichel: nice
[20:05:39] <_methods> man i gotta get one of those 6040's so i can start making boxes like that
[20:05:45] <Loetmichel> 12" 1024*768 display from an old IBM x21
[20:05:56] <_methods> yeah it's nice being able to use old displays
[20:06:01] <Loetmichel> and a 10 eur converter board from a german surplus dealer
[20:06:02] <_methods> i hate seeing old laptops go to waste
[20:06:15] <Loetmichel> and an inverter from a casemodding CCFL
[20:06:39] <_methods> i used teh old laptop power supply for mine initially
[20:07:18] <Loetmichel> i bought just the display from Ebay
[20:07:20] -!- Valen [Valen!~Valen@c211-30-128-202.blktn6.nsw.optusnet.com.au] has joined #linuxcnc
[20:07:25] <Loetmichel> not the whole notebook
[20:07:44] -!- skunkworks_ has quit [Ping timeout: 272 seconds]
[20:07:51] <Loetmichel> because the 15" i had there before is a BIT to big to fit the rack:
http://www.cyrom.org/palbum/main.php?g2_itemId=12569
[20:08:03] <_methods> i need to build a battery charging circuit for it still so i can charge it while on power then go to battery when i pull it off mains
[20:08:11] <Loetmichel> the 12" fits on the (brown) back wall beside the mill
[20:08:50] <_methods> i like that keyboard
[20:09:23] <miss0r|shop> yay! It just completed the "tux" milling test without breaking anything
[20:09:33] <_methods> nice
[20:10:40] <miss0r|shop> I love that keyboard. I tried to get a regular keyboard with that cover you could get in the 'old days' but that seems impossible to find
[20:13:09] <Loetmichel> _methods: that keyboard is fine for CNC: silicone, so heat resistand AND watertight
[20:13:21] -!- miss0r|shop has quit []
[20:13:22] <_methods> yeah
[20:13:24] <Loetmichel> -> no coolant or red hot chip problems
[20:13:32] <_methods> i need to pick up one of those
[20:13:42] <Loetmichel> it is really not meant to type long essays tho ;-)
[20:14:00] <_methods> i just wnat it for my cnc
[20:14:06] <_methods> so it's coolant and chip resistant
[20:15:14] <Loetmichel> i just meant: you will NOT like it if you chat a lot on the CNC cpu ;-)
[20:15:31] <_methods> yeah
[20:18:44] -!- b_b has quit [Remote host closed the connection]
[20:19:41] <PetefromTn_> Hey I can even watch the Formula 1 races COOOL!!
[20:19:43] -!- tekniq [tekniq!~tekniq@198.179.137.221] has joined #linuxcnc
[20:24:49] -!- Rickta59 has quit [Ping timeout: 244 seconds]
[20:29:12] -!- acdha has quit [Quit: Textual IRC Client: www.textualapp.com]
[20:32:29] -!- PetefromTn_ has quit [Read error: Connection reset by peer]
[20:35:28] * LeelooMinai ponders if Formula 1 races have still humans inside or the cars just drive themselves
[20:35:31] -!- KimK_laptop [KimK_laptop!~Kim@wsip-70-186-238-216.ks.ks.cox.net] has joined #linuxcnc
[20:39:22] -!- skunkworks [skunkworks!~chatzilla@str-broadband-ccmts-ws-26.dsl.airstreamcomm.net] has joined #linuxcnc
[20:42:15] -!- theorbtwo [theorbtwo!~theorb@cpc3-swin16-2-0-cust28.3-1.cable.virginm.net] has joined #linuxcnc
[20:45:25] -!- motioncontrol has quit [Quit: Sto andando via]
[20:48:13] -!- riot has quit [Remote host closed the connection]
[20:48:25] -!- tekniq_ [tekniq_!~tekniq@207.173.13.201] has joined #linuxcnc
[20:50:56] -!- tekniq has quit [Ping timeout: 246 seconds]
[20:51:39] -!- adowning_ has quit [Quit: Leaving]
[20:55:08] -!- kriskropd has quit [Quit: leaving]
[20:56:27] -!- kriskropd [kriskropd!~kris@unaffiliated/kriskropd] has joined #linuxcnc
[20:59:01] -!- mhaberler [mhaberler!~mhaberler@bigmac.stiwoll.mah.priv.at] has joined #linuxcnc
[20:59:01] -!- mhaberler has quit [Client Quit]
[21:06:28] -!- eFuchs has quit [Remote host closed the connection]
[21:06:38] -!- eFuchs [eFuchs!~home_swee@dyn-31-25-157-250.ewacom.ropa.net] has joined #linuxcnc
[21:13:04] -!- bitreaper [bitreaper!3f967364@gateway/web/freenode/ip.63.150.115.100] has joined #linuxcnc
[21:14:32] <XXCoder> http://picpaste.com/deafnews.jpg heh
[21:17:51] -!- syyl [syyl!~sg@p200300632C236D16B1377ECD30F15048.dip0.t-ipconnect.de] has joined #linuxcnc
[21:20:22] -!- syyl_ has quit [Ping timeout: 265 seconds]
[21:21:59] <Swapper> anyone here running a altivar vfd with linuxcnc over modbus?
[21:22:19] <Swapper> Cant seem to get that darn comp working..
[21:33:31] <robinsz> modbus?
[21:34:05] <Swapper> yea modbus
http://wiki.linuxcnc.org/cgi-bin/wiki.pl?VFD_Modbus
[21:34:31] <Swapper> Industrial serial protocol to tell stuff to the the tings you whant it to do
[21:34:50] <robinsz> I am aware what modbus is, just not seen anyone hook it up to emc before
[21:34:51] <Swapper> but my linuxcnc doest not do what i tell it to :)
[21:34:58] <robinsz> it might well be doable under HAL
[21:35:24] <Swapper> theres a complete comp for the VFD with feedback and all, if i could compile it!
[21:35:26] -!- PetefromTn_ [PetefromTn_!~IceChat9@75-136-60-251.dhcp.jcsn.tn.charter.com] has joined #linuxcnc
[21:35:27] <Swapper> and run it
[21:35:41] <Swapper> but i have tried for 2 days now
[21:36:13] <Swapper> This is the component (userspace)
http://git.mah.priv.at/gitweb?p=emc2-dev.git;a=commit;h=04e08b52b28732b4bf2fb0dd7283fe7496741167
[21:36:32] <Swapper> cant compile it with halcompile ither (does not support .c files in userspace)
[21:36:46] <Swapper> i cant compile it with "make" it throws an error
[21:37:04] <Swapper> atv# make
[21:37:04] <Swapper> The required program "comp" could not be found
[21:37:04] <Swapper> The required program "comp" could not be found
[21:37:04] <Swapper> Makefile:7: *** Required files for building components not present. Install emc2-dev. Stop.
[21:37:32] -!- tekniq [tekniq!~tekniq@198.179.137.221] has joined #linuxcnc
[21:37:32] <robinsz> beyond me ...
[21:37:51] <robinsz> you need alexjoni or someone who actually knows that they are doing
[21:37:59] <robinsz> tried on emcdev?
[21:38:10] <robinsz> sorry, linuxcnc-dev?
[21:38:12] <Swapper> emcdev == linuxcnc-dev and i have that
[21:38:14] <Swapper> installed
[21:38:25] <robinsz> no, the IRC channel
[21:38:31] <robinsz> #linuxcnc-dev
[21:38:33] <Swapper> oh
[21:38:36] <robinsz> ask on there
[21:38:40] <Swapper> ill do that !
[21:38:46] <robinsz> thats where clever people live!
[21:39:13] -!- Swapper has quit [Quit: leaving]
[21:39:32] -!- Swapper [Swapper!~swapper@81-229-58-225-no121.tbcn.telia.com] has joined #linuxcnc
[21:39:33] <tjtr33> if its a RIP, and you've spent 2 days already, maybe try make on the whole system? ( maybe 'touch' the src file so it looks new to make )
[21:40:18] <Swapper> i have only downloaded the altivar parts
[21:40:40] <Swapper> running from buildbot 2.8
[21:40:54] -!- tekniq_ has quit [Ping timeout: 252 seconds]
[21:41:08] <Swapper> what i can see the altivar comp is old and probably not updated
[21:41:15] <Swapper> for newer linuxcnc installs
[21:41:30] <Swapper> but thats weerd since someone has to use the comp ?
[21:41:50] <Swapper> loads of people use modbus to control there chines VFDs atleast
[21:42:41] <Swapper> probably easier to hook it up to +-10v...
[21:42:44] <Swapper> but thats cheating
[21:43:03] <Swapper> and all this for controling a coolant pump: )
[21:43:48] <tjtr33> you're adding a piece to a system, the system you have doesnt know about the piece. you may need to build the entire system. plz ask on mail list or on linuxcnc-dev
[21:45:24] -!- PetefromTn_ has quit [Quit: I'm Outta here!!]
[21:47:13] <tjtr33> maybe a quick email to author martin dot kaplan at vlg dot cz
[21:48:02] <Swapper> yea ill do that
[21:48:08] <Swapper> cant seem to find any ppl in linuxcnc-dev
[21:48:17] <Swapper> im prob to tired to think
[21:48:39] <tjtr33> recently i found that Prague CZ was really Praha CZ another westernization wihout local permission
[21:49:09] <tjtr33> the guys in -dev are often busy, but the do respond better to the mail lists and on the forum
[21:51:03] <tjtr33> http://www.penta-edm.cz/ damn and they were at TimTos, missed it
[21:53:30] -!- Rickta59 [Rickta59!~Rickta59@cpe-174-106-151-175.ec.res.rr.com] has joined #linuxcnc
[21:59:06] <Deejay> gn8
[22:00:44] -!- Deejay has quit [Quit: bye]
[22:05:27] -!- jvrousseau has quit [Quit: Textual IRC Client: www.textualapp.com]
[22:05:50] -!- sliptonic has quit [Ping timeout: 252 seconds]
[22:06:02] -!- sliptonic [sliptonic!sliptonic@2600:3c00::f03c:91ff:fe89:1c2c] has joined #linuxcnc
[22:19:37] -!- TTN_ has quit [Quit: gnight :)]
[22:20:18] -!- TTN [TTN!~TTN@unaffiliated/ttn] has joined #linuxcnc
[22:30:35] -!- akex2 [akex2!uid58281@gateway/web/irccloud.com/x-svondjymmzxyyuoi] has joined #linuxcnc
[22:33:00] -!- mttr [mttr!~mttr@0016019a1697.cpe.westmancom.com] has joined #linuxcnc
[22:35:03] -!- nerdfiles has quit [Ping timeout: 256 seconds]
[22:37:38] -!- asdfasd [asdfasd!~332332@94.10.230.26] has joined #linuxcnc
[22:39:43] -!- moorbo [moorbo!~moorbo@dyn-21-121.mdm.its.uni-kassel.de] has joined #linuxcnc
[22:41:09] -!- MrHindsight [MrHindsight!~not_sure@unaffiliated/capthindsight] has joined #linuxcnc
[22:42:53] -!- xlogik [xlogik!~xlogik@c-50-157-222-151.hsd1.ma.comcast.net] has joined #linuxcnc
[22:46:56] -!- Roguish_ [Roguish_!~chatzilla@c-50-143-183-159.hsd1.ca.comcast.net] has joined #linuxcnc
[22:47:38] <CaptHindsight> tjtr33: which GUI do you use for making lots of mods for unique machines?
[22:54:28] -!- dirty_d [dirty_d!~adowning@c-76-118-118-156.hsd1.ma.comcast.net] has joined #linuxcnc
[22:54:51] <dirty_d> fusion 360's sketching is just terrible
[22:55:17] <dirty_d> cant een make a cross section of a damn tool, lol
[22:56:44] <CaptHindsight> what is Fusion 360?
[22:58:14] <CaptHindsight> Autodesk has so many levels of CAD software. I wonder how many are the same app with different features removed and a lower price tag.
[22:58:29] -!- [cube] has quit [Ping timeout: 265 seconds]
[23:03:37] -!- [cube] [[cube]!~cube@bas17-ottawa23-1242339827.dsl.bell.ca] has joined #linuxcnc
[23:05:00] <dirty_d> the free one
[23:05:15] <dirty_d> the cam is pretty good though
[23:11:18] -!- anth0ny_ has quit [Quit: anth0ny_]
[23:15:29] -!- koo5 has quit [Ping timeout: 246 seconds]
[23:15:55] <tjtr33> CaptHindsight, pyvcp panels
[23:15:57] -!- FreezingCold [FreezingCold!~FreezingC@135.0.41.14] has joined #linuxcnc
[23:20:38] <CaptHindsight> http://www.autodesk.com/products/fusion-360/overview as low as $25 per month
[23:20:52] <CaptHindsight> do you have to be online for it to work?
[23:21:14] -!- FinboySlick has quit [Quit: Leaving.]
[23:22:36] <tjtr33> CaptHindsight, i see i did use glade & gtk too
[23:22:37] <dirty_d> probably
[23:26:53] <CaptHindsight> http://www.3ders.org/articles/20150310-supercharge-your-3d-printer-with-the-fastbot-bbp-controller-board.html
[23:27:11] -!- AR_ [AR_!~AR@24.238.81.234.res-cmts.sth2.ptd.net] has joined #linuxcnc
[23:27:13] <CaptHindsight> powered by an AM335x, 1GHZ Cortex-A8 processor
[23:27:15] <tjtr33> at one time i had a velocity override that was a bezier curve, you could bend the velocity response to a process.
[23:28:22] <_methods> no you can use fusion360 in offline mode
[23:28:41] <_methods> the cam package is fairly impressive
[23:28:53] <CaptHindsight> looks like BBB with drivers onboard for an all in one
[23:28:55] <_methods> the assembly and drawing portions are a bit disappointing
[23:29:40] -!- Roguish_ has quit [Quit: ChatZilla 0.9.91.1 [Iceweasel 31.5.0/20150225065709]]
[23:32:26] <tjtr33> Drew Fustini of Pumping Station One is in the BBP credits !?
[23:37:53] -!- DGMurdockIII [DGMurdockIII!~dgmurdock@c-73-168-14-247.hsd1.in.comcast.net] has joined #linuxcnc
[23:41:07] -!- KimK_laptop has quit [Quit: Leaving]
[23:41:14] <dirty_d> ahhhh! cant figure out how the hell to import a form tool into fusion360
[23:41:22] <dirty_d> http://knowledge.autodesk.com/support/cam-360/learn-explore/caas/CloudHelp/cloudhelp/ENU/CAM360/files/GUIDC3DDEDCA-0827-4F0F-A266-9A0404F7D9BE-htm.html
[23:41:29] <dirty_d> you would think just doing what they say would work...
[23:41:49] <_methods> you mean like a sheet metal form tool?
[23:41:51] <moorbo> from autodesk forums?
[23:41:55] <moorbo> ha!
[23:42:47] -!- Camaba has quit [Ping timeout: 246 seconds]
[23:43:42] <dirty_d> _methods, no an end mill that you specify the geometry of
[23:44:49] <dirty_d> i suppose i can just pretend its an end mill
[23:44:57] <_methods> oh you want to import a custom tool shape
[23:45:26] <tjtr33> linke a step drill or radius cutter or something you whip up on a cutter grinder?
[23:46:41] <dirty_d> well this is a single profile thread mill
[23:46:42] <_methods> yeah i never tried to make any custom tool geometry
[23:47:00] <_methods> if you want to do complicated stuff you're going to need to use real software like mastercam or something
[23:47:17] <andypugh> CaptHindsight: That Kickstarter “$80,000 will support the MachineKit software”. Why would that cost _more_ than their custom software?
[23:50:13] -!- asdfasd has quit [Ping timeout: 264 seconds]
[23:52:30] -!- FinboySlick [FinboySlick!~shark@squal.net] has joined #linuxcnc
[23:53:12] <andypugh> Anyway, sleep time.
[23:53:17] -!- andypugh has quit [Quit: andypugh]
[23:53:40] -!- moorbo has quit [Remote host closed the connection]
[23:53:46] <dirty_d> im somewhat confused about thread milling
[23:54:07] <dirty_d> i have my models dimension to the OD major diameter
[23:54:29] -!- sumpfralle [sumpfralle!~lars@megumi.opennet-initiative.de] has joined #linuxcnc
[23:54:40] -!- TTN has quit [Ping timeout: 272 seconds]
[23:54:40] <dirty_d> id imagine i want the cutting edge to cut as deep as the OD minor diameter right?
[23:54:50] <dirty_d> but fusion36 asks for pitch diameter offset
[23:55:46] <_methods> no you'd want to go to the minor
[23:56:11] -!- tekniq_ [tekniq_!~tekniq@198.179.137.210] has joined #linuxcnc
[23:56:13] <dirty_d> yea
[23:56:16] <dirty_d> but...
[23:56:35] <dirty_d> i doubt the tool edge is a perfect triangle point
[23:56:41] <dirty_d> it probably has a small radius to it
[23:56:49] <_methods> sure most threading tools do
[23:57:02] <_methods> go to the virtual sharp
[23:57:03] <dirty_d> so is the 0.240" cutting diameter the actual diameter, or the diameter a perfect 60deg triangle form would make?
[23:57:20] <_methods> is .240" your minor diameter?
[23:57:24] <Roguish> PCW: I have responded and added info to the forum post.
[23:57:28] <_methods> oh that is your tool form
[23:57:32] <dirty_d> no, the thread mill says 0.240" cutting diameter
[23:57:48] <_methods> i'd measure from centerline to check
[23:58:02] <_methods> but yes it should be .240" if that's what the datasheet says
[23:58:18] <dirty_d> 0.240" to the radius, if there is one?
[23:58:29] <dirty_d> because then you dont know what the pitch diamter of the cutter is
[23:58:31] <dirty_d> which is more important
[23:58:44] -!- tekniq_ has quit [Remote host closed the connection]
[23:58:46] <_methods> yes pitch diameter is what matters
[23:58:46] -!- adb has quit [Ping timeout: 252 seconds]
[23:59:04] <dirty_d> i dont know what it is though unless the tool really is a perfect triangle shape
[23:59:19] -!- tekniq_ [tekniq_!~tekniq@198.179.137.210] has joined #linuxcnc
[23:59:47] <_methods> that's what thread guages are for
[23:59:48] <dirty_d> it hasnt been delivered yet, so i cant really see
[23:59:51] <_methods> cut your threads then measure
[23:59:54] -!- tekniq has quit [Ping timeout: 256 seconds]
