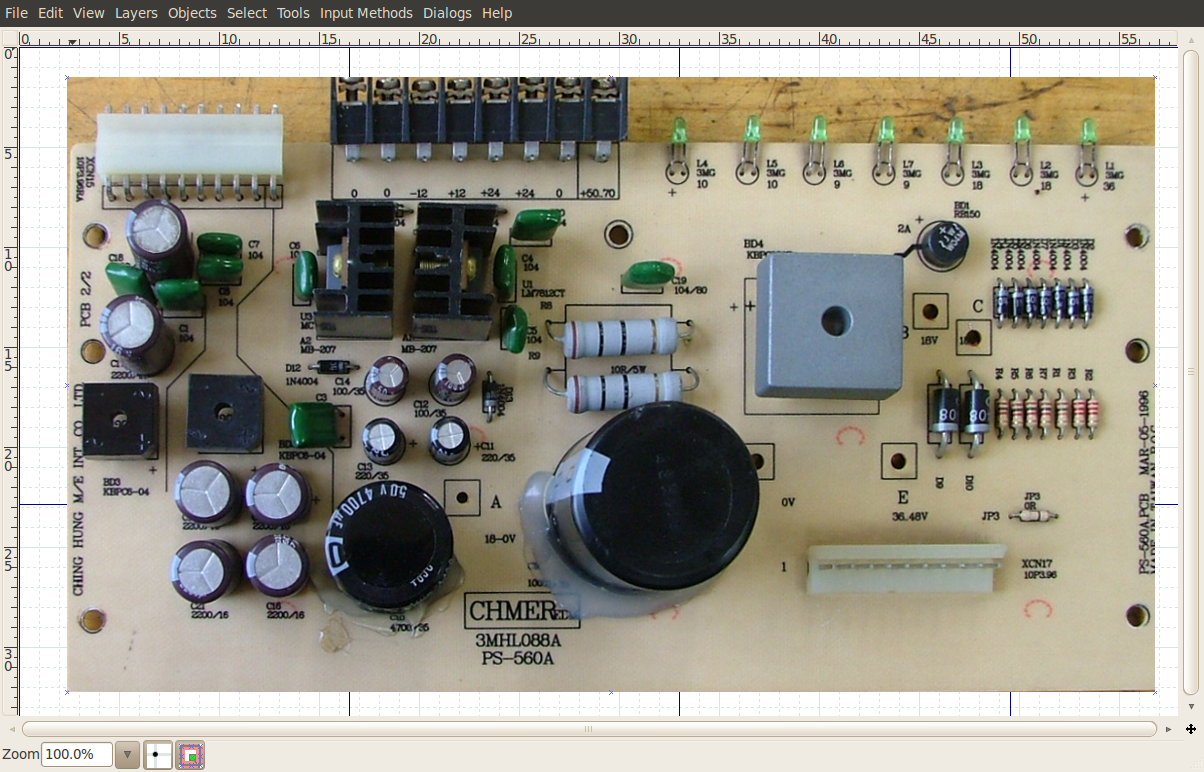

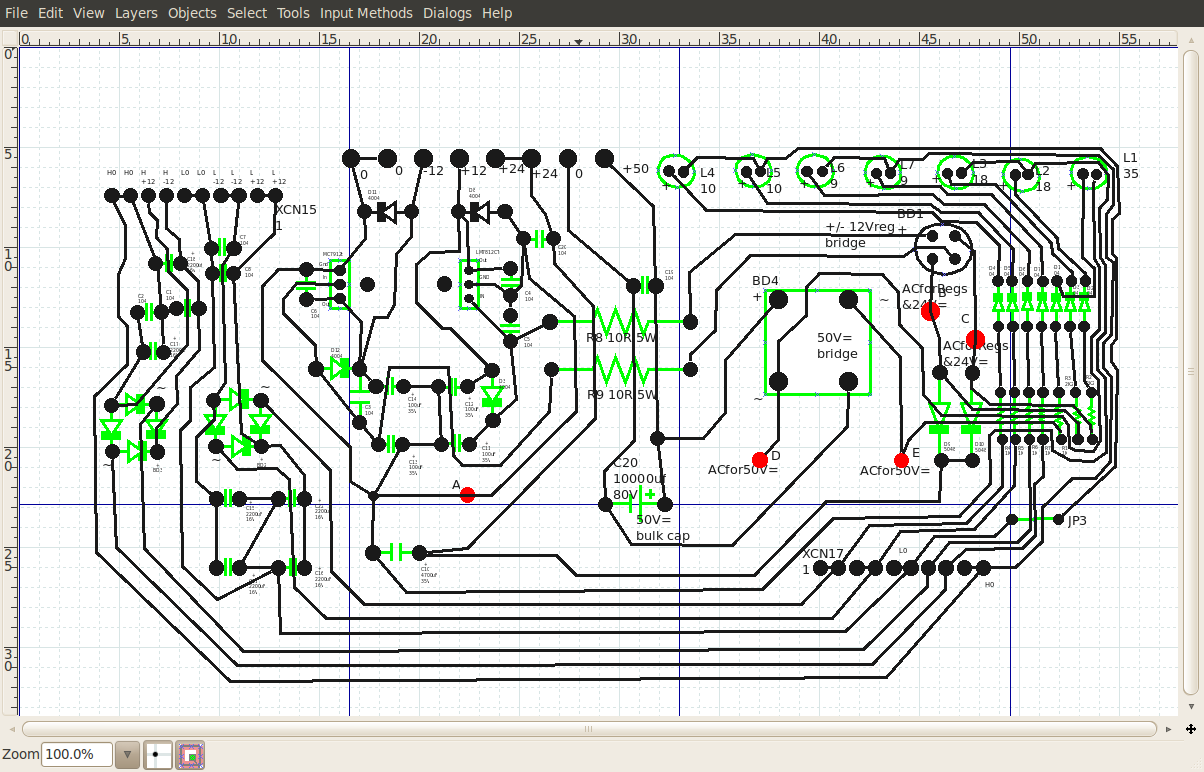

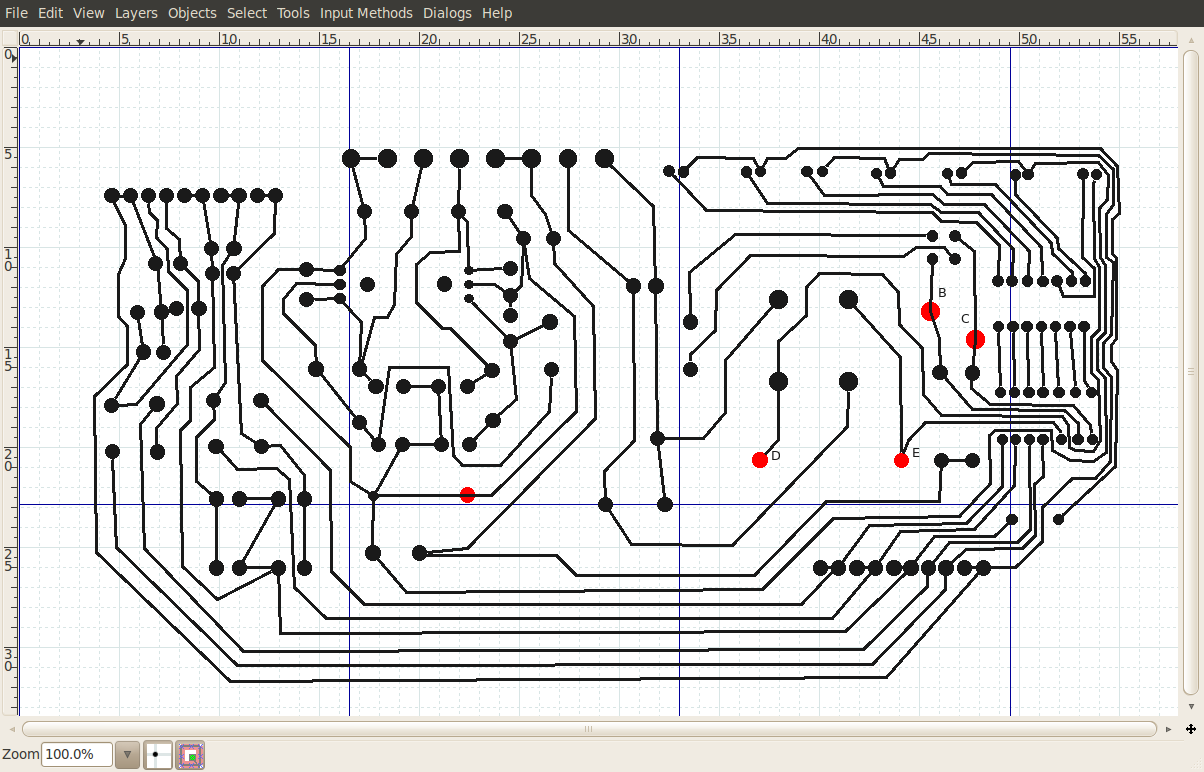

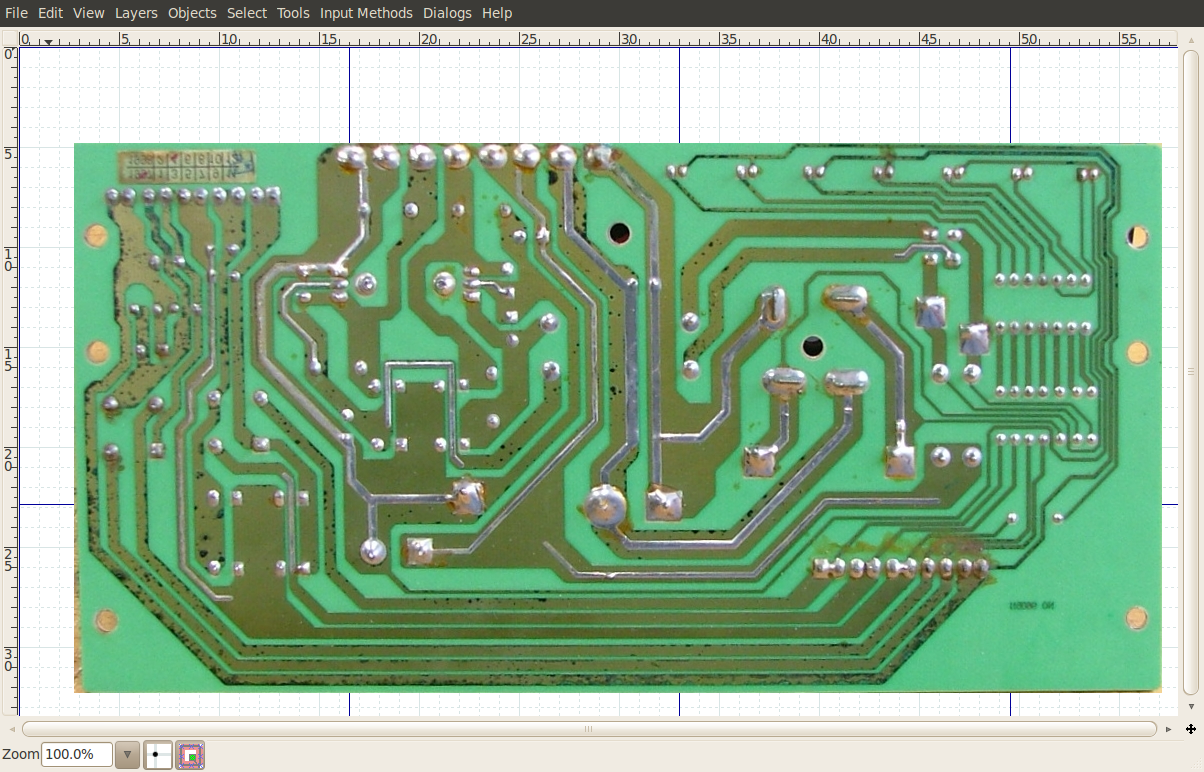

[00:00:09] <zeeshan> so this board has 12 pins.
[00:00:13] <andypugh> So, each shaft makes about 4 full turns to select a gear and the outer ring gear and magnet tells the system when to stop
[00:00:18] <zeeshan> i know 9 wires from this board went to the control cabinet
[00:00:31] <zeeshan> 3 wires came from the optical photointerruptor on the spindle

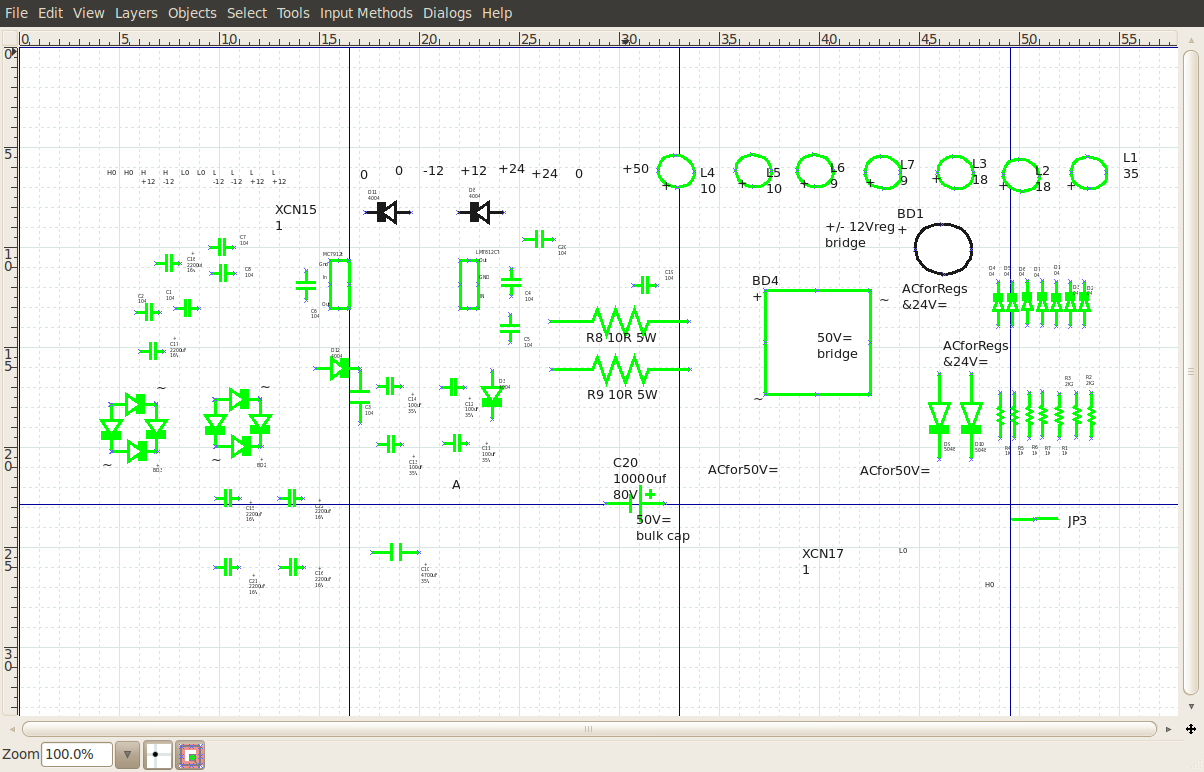

[00:00:48] <zeeshan> so all this voltage regulator stuff
[00:00:58] <andypugh> Yeah, forget all that. This is screaming “GPIO and HAL component”
[00:00:59] <zeeshan> with that big ass resistor might be to step the voltage dowjn from 24v to 5v
[00:01:38] <zeeshan> so all i should care about
[00:01:47] <zeeshan> is the signals going to and coming from each one of those hall sensors
[00:01:52] <zeeshan> thats all i need on this board?
[00:02:08] <zeeshan> because based on those, i can pass the motor power through a relay
[00:02:16] <zeeshan> and that relay will be activated through 7i77 w/ linuxcnc
[00:02:29] <andypugh> I bet you 50p that if you wind the inner gears so that the magnets are at the various 3-o-clock and 9-o-clock positions you can select all 8 gears.
[00:02:58] <zeeshan> wind = rotate?
[00:03:00] -!- tocka has quit [Quit: My MacBook Pro has gone to sleep. ZZZzzz…]
[00:03:15] <zeeshan> winding to me is like "winding a torsional spring"
[00:03:16] <zeeshan> :)
[00:03:22] <andypugh> Make sure that the motors only need to turn one way, it may be that there are internal stops.
[00:03:34] <zeeshan> there are internal stops
[00:03:38] <zeeshan> i moved those splines manually
[00:03:42] <zeeshan> and engaged it in different gears
[00:03:45] -!- toudi has quit [Ping timeout: 244 seconds]
[00:03:55] <zeeshan> there seems to be 4 positions per gear
[00:03:57] <andypugh> Right, so you need bidirectional control of the motors.
[00:04:19] <andypugh> There may be 2 positions and 2 neutrals
[00:04:45] <andypugh> (for each shaft)
[00:05:00] <zeeshan> i have a diagram for another machine that is _similar_
[00:05:05] <andypugh> But as the sensors can’t see the neutrals, I doubt it.
[00:05:06] <zeeshan> but might be different
[00:05:42] <zeeshan> https://www.dropbox.com/sh/ti3t81sxkky36in/AAAGffuUME_d8rCreVbBW2Jxa/SCHEMATICS?dl=0#lh:null-maho_400e_schematics_10.png
[00:05:52] <zeeshan> er ignore that one.
[00:06:01] <zeeshan> https://www.dropbox.com/sh/ti3t81sxkky36in/AAAGffuUME_d8rCreVbBW2Jxa/SCHEMATICS?dl=0#lh:null-maho_400e_schematics_12.png
[00:06:02] <zeeshan> this is it
[00:06:31] <zeeshan> https://www.dropbox.com/sh/ti3t81sxkky36in/AAAGffuUME_d8rCreVbBW2Jxa/SCHEMATICS?dl=0#lh:null-maho_400e_schematics_15.png
[00:06:33] <zeeshan> this is better
[00:06:44] <zeeshan> 4 positions "left right center left-middle"
[00:06:48] <zeeshan> whatever left middle is lol
[00:07:04] <andypugh> I would make a table for each of the 8 magent positions (left or right) turn the input shaft by hand, counting turns, for one chuck rotation. If the input shaft won’t turn in some positions then perhaps the neutral posiitons are important, but without a sensor for positive detection I dount it.
[00:07:40] <zeeshan> the thing is
[00:07:47] <zeeshan> its hard to tell if its engaged in a gear when moving by hand
[00:08:07] <zeeshan> its not like lathe gear selection on a lathe
[00:08:13] <zeeshan> where you can "hear" it click in
[00:08:30] <zeeshan> i guess i can rotate the spindle by hand
[00:08:37] <zeeshan> i mean the motor by hand
[00:08:45] <zeeshan> and see if the spindle spins, if it spins, i know its a discrete position
[00:08:55] <andypugh> That is what I was suggesting, and get a table ot gear ratios
[00:09:14] <zeeshan> once i have my table
[00:09:20] <zeeshan> how would the control work?
[00:09:31] <andypugh> I am moderately sure that the magnets should only be left or right, not anywhere inbetween
[00:09:48] -!- moorbo [moorbo!~moorbo@dyn-int-218-159.hrz.uni-kassel.de] has joined #linuxcnc
[00:09:57] <zeeshan> well to check that
[00:10:00] <zeeshan> i can power one of the hall sensors
[00:10:06] <zeeshan> and rotate the spindle by hand
[00:10:10] <zeeshan> spindle = gear
[00:10:31] <zeeshan> and see for each gear, what v_out is for each of the hall sensors per motor
[00:10:37] <zeeshan> (so 3x per motor)
[00:10:38] <andypugh> As for control, looks like CL or custom HAL component.
[00:10:53] <andypugh> You need to move motors, and that’s stateful
[00:11:20] <zeeshan> hall sensors output => input 7i77. output 7i77 -> relay -> motors
[00:11:21] <zeeshan> ?
[00:11:49] <zeeshan> im gonna play around with this circuit board
[00:11:51] <zeeshan> definitely interesting
[00:12:11] <zeeshan> i could transfer the concept over to the lathe
[00:12:18] <zeeshan> and have excellent torque
[00:12:36] -!- ve7it [ve7it!~LawrenceG@S01060014d19d0b68.pk.shawcable.net] has joined #linuxcnc
[00:12:40] <zeeshan> thanks!
[00:12:44] <andypugh> Ignoring for the moment where the gear request comes from, you would need to determine that Gear 3 was left-right-left (for example) and then move the motors until that was true before enabling the spindle.
[00:13:50] <tjtr33> im doing some state machine work in hal now, each state exits returning the next state to be executed.
[00:14:34] <andypugh> This is more fun in that you have three consecutive state machines.
[00:15:08] <andypugh> And that is how you would code it, run the three state machines in sequence, and enable spindle when all are back to state 0.
[00:16:01] <andypugh> zeeshan: Get your table and I will try to hack together a component, it sounds like fun.
[00:17:18] <andypugh> But now I need to sleep.
[00:17:22] <andypugh> Night all.
[00:17:32] -!- andypugh has quit [Quit: andypugh]
