[00:01:50] -!- tronwizard [tronwizard!~tronwizar@24.229.167.126.res-cmts.sm.ptd.net] has joined #linuxcnc
[00:06:43] <PCW> turbozee: http://www.ebay.com/itm/Heidenhain-IDP-101-Encoder-Interpolation-Interface-11uA-to-TTL-262417-03-/281448570707?pt=LH_DefaultDomain_2&hash=item4187a45f53
[00:06:45] <PCW> 3x 11 ua to TTL 5x or 10X (so 1 u or 1/2 u resolution with your scales) $29.95 buy it now
[00:08:15] <PCW> (but you may find something similar in your controller box already)
[00:09:52] -!- rob_h has quit [Ping timeout: 240 seconds]
[00:20:52] <zeeshan|2> thank you!
[00:21:05] <zeeshan|2> what does 5 or 10 fold interpolation mean?
[00:21:23] <zeeshan|2> if 4 u is the resolution you can get to 4/5
[00:21:28] <zeeshan|2> through interpolation?
[00:21:40] <zeeshan|2> resolution = distance between tick marks
[00:29:20] <tjtr33> good find , be careful , theres a reason those thing are usually in cast metal cases. 11uA doesnt take a lot of noise to screw up.
[00:29:46] <zeeshan|2> i can throw it in a box
[00:30:33] -!- erve has quit [Ping timeout: 265 seconds]
[00:31:31] <tjtr33> i dont see the 3x , but cheap for 1x
[00:32:00] <zeeshan|2> in a few
[00:32:06] <zeeshan|2> im gonna go rip apart the tnc 150
[00:32:06] -!- anth0ny_ has quit [Quit: anth0ny_]
[00:32:11] <zeeshan|2> and see if there is a seperate board in there
[00:32:40] <tjtr33> just past the round encoder connector, often at a 45 deg to main board
[00:33:09] <PCW> 5 or 10 times scale resolution *4 so a 20 u scale will have 1 or .5 u resolution
[00:33:18] <tjtr33> you should be able to find service manuals on web
[00:33:21] <zeeshan|2> ah pcw
[00:33:26] <zeeshan|2> tjtr33: http://t0.gstatic.com/images?q=tbn:ANd9GcRaGPL2F-QyxQBungDsgfGcOFC2fMoIwWnJvsaXEGcF3BIwEm85
[00:33:32] <zeeshan|2> http://www.tecnoinricambimacchineutensili.com/WebRoot/StoreIT4/Shops/60411/536A/2DBF/B992/0E22/F12C/3E95/9310/A2AA/Ricambi_Macchine_Utensili_Tecno_In_srl_Heidenhain_CNC_Controllo_Numerico_TNC_150.JPG
[00:33:34] <zeeshan|2> i mean that image
[00:33:38] <zeeshan|2> we're talking about that box right? :D
[00:33:54] <zeeshan|2> http://www.tecnoinricambimacchineutensili.com/WebRoot/StoreIT4/Shops/60411/536A/2DBF/B992/0E22/F12C/3E95/9310/A2AA/Heidenhain_CNC_Controllo_Numerico_TNC_150_Tecno_In_srl.jpg
[00:33:56] <zeeshan|2> it looks like in th eback
[00:34:05] <zeeshan|2> theres where i'm going to start investigating :D
[00:34:27] <tjtr33> thats just the operator panel, i use these thing (TNC150) for hole drills
[00:34:39] <tjtr33> i think i got some in garage
[00:34:45] <zeeshan|2> im pretty sure the encoders
[00:34:48] <zeeshan|2> are feeding into that..
[00:34:51] <zeeshan|2> they go no where to the main panel
[00:34:58] <zeeshan|2> *main electrical box that is
[00:35:03] -!- zzolo has quit [Quit: zzolo]
[00:36:21] <tjtr33> http://content.heidenhain.de/doku/oma_controls/CD1/tnc/150/gb/sa150.pdf
[00:37:33] <tjtr33> page 33
[00:38:29] <tjtr33> page 64
[00:39:48] <zeeshan|2> damn it
[00:39:49] -!- anarchos2 has quit [Read error: Connection reset by peer]
[00:39:54] <zeeshan|2> i wish i could speak german haha
[00:40:14] -!- anarchos2 [anarchos2!~mike@S010600259ce59399.vn.shawcable.net] has joined #linuxcnc
[00:40:28] <tjtr33> google translate is you friend stellgeshwindekeit
[00:40:57] <tjtr33> ขายบานนอคดาวน บานเรือนไทย ศาลาเรือนไทย ขนาดตางๆ เป็ นบานที่อยุอาศัย ที่พักตากอากาศ!
[00:41:23] <zeeshan|2> oh
[00:41:27] <zeeshan|2> i think its a seperate board
[00:41:34] <tjtr33> iirc
[00:41:36] <zeeshan|2> page 50 on the actual papers
[00:41:45] <zeeshan|2> lists "analog board"
[00:41:49] <zeeshan|2> page 61
[00:42:28] <tjtr33> careful, this is an analog cnc control, so it outputs analog velocity commands ( not pwm , real analog )
[00:42:43] <zeeshan|2> oh
[00:42:59] <zeeshan|2> i dpont know if you know this
[00:43:01] <tjtr33> haha what desktop do i have that open on?
[00:43:11] <zeeshan|2> but i'm trying to retrofit it in linuxcnc

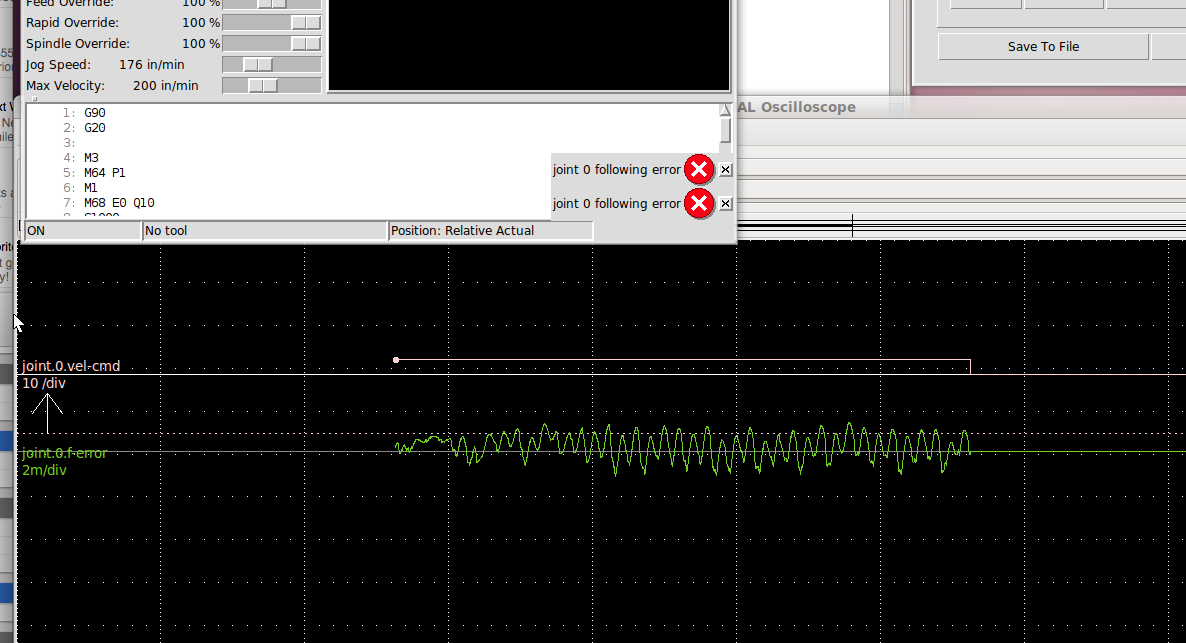

[00:43:18] <zeeshan|2> so the feedback position loop will be through linuxcnc

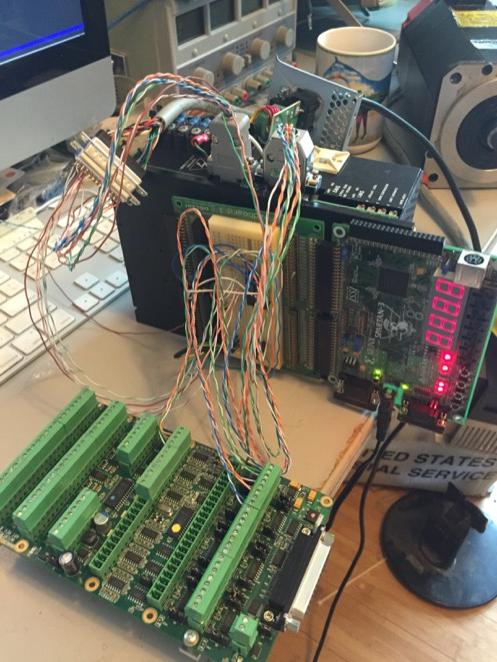

[00:43:21] <zeeshan|2> using mesa hardware
[00:43:31] -!- Thetawaves has quit [Quit: This computer has gone to sleep]
[00:44:34] <tjtr33> yes good choice, i'm thinking to replace TNC416 with mesa
[00:44:54] <tjtr33> and others have done MAHOs with TNC and MESA ( again google )
[00:44:58] <zeeshan|2> thats why im trying to scavenge the parts
[00:45:07] <zeeshan|2> things like interpolator boards
[00:45:10] <zeeshan|2> servo amp
[00:45:11] <zeeshan|2> etc
[00:45:25] <zeeshan|2> so i can throw them into another cabinet
[00:45:29] <zeeshan|2> and simplify :P
[00:46:46] <tjtr33> hmm, i dunno if someone sugggested they could read the sinus already. search the old irc archives ( psha's is searchable I think, and (sob) MHA's seems dead :(
[00:46:56] <CaptHindsight> nicht zu machin mit dem smokesgeputtin!
[00:47:17] <tjtr33> gestunk! vermished! verblungened!
[00:47:34] <tjtr33> nicht fer der fingerpoken
[00:47:42] <CaptHindsight> yah yah
[00:48:43] <CaptHindsight> or der sparksgeflyin
[00:50:43] -!- Thetawaves [Thetawaves!~Thetawave@186-51-178-69.gci.net] has joined #linuxcnc
[00:51:01] <PCW> zeeshan|2: the TNC manual shows EXE interpolators external to the controller box
[00:51:24] <PCW> so somewhere else on the machine
[00:51:59] -!- anth0ny_ has quit [Quit: anth0ny_]
[00:55:08] <tjtr33> i think maybe it is in this box, the book says the measuring signals are processed on the analog board CLP board read page 48 sec 4.1
[00:55:55] <tjtr33> i dont recall using EXE's on TNC 150, the control was used on cheap <20K$ hole poppers
[00:59:56] <PCW> Page 61 of the manual shows them
[01:00:17] <tjtr33> soory on vid conf, will check thx PCW
[01:02:32] <zeeshan|2> pcw
[01:02:35] <zeeshan|2> i found the interpolator
[01:02:38] <zeeshan|2> it's within the tnc 150 box
[01:02:42] -!- skunkworks_ [skunkworks_!~chatzilla@str-broadband-ccmts-ws-26.dsl.airstreamcomm.net] has joined #linuxcnc
[01:02:54] <zeeshan|2> unless im looking at the wrong thing
[01:03:46] <zeeshan|2> pcw that's so weird.
[01:03:51] <zeeshan|2> it does say external
[01:03:53] <zeeshan|2> but ifound this:
[01:04:14] <PCW> Yeah but page 48 says only for long cables
[01:06:03] <zeeshan|2> https://www.flickr.com/photos/128539016@N05/15536189301/
[01:06:05] <zeeshan|2> thats the board
[01:06:19] <zeeshan|2> the stuff on the right is handwheel
[01:06:23] <ssi> omg donuts
[01:06:25] <zeeshan|2> stuff on the left is 4 axis encoder
[01:06:38] <zeeshan|2> the top black connectors are where the inputs are
[01:06:43] <zeeshan|2> but i'm gonna find it almost impossible
[01:06:46] <zeeshan|2> to figure out where the outputs are
[01:07:01] <zeeshan|2> it might be easier just to buy that board you linked to
[01:07:19] <zeeshan|2> https://www.flickr.com/photos/128539016@N05/15538891175/
[01:07:20] <zeeshan|2> seriously
[01:07:23] <zeeshan|2> theres a CRAP load of pins
[01:07:24] <zeeshan|2> ahha
[01:08:04] <zeeshan|2> the circuit board in the scanned file
[01:08:09] <zeeshan|2> is almost unreadable!
[01:08:42] <zeeshan|2> nm
[01:08:58] <zeeshan|2> man ireally like these old circuit boards
[01:08:59] <zeeshan|2> they're so pretty
[01:09:14] <zeeshan|2> look so easy to repair
[01:09:16] <zeeshan|2> if a component fails

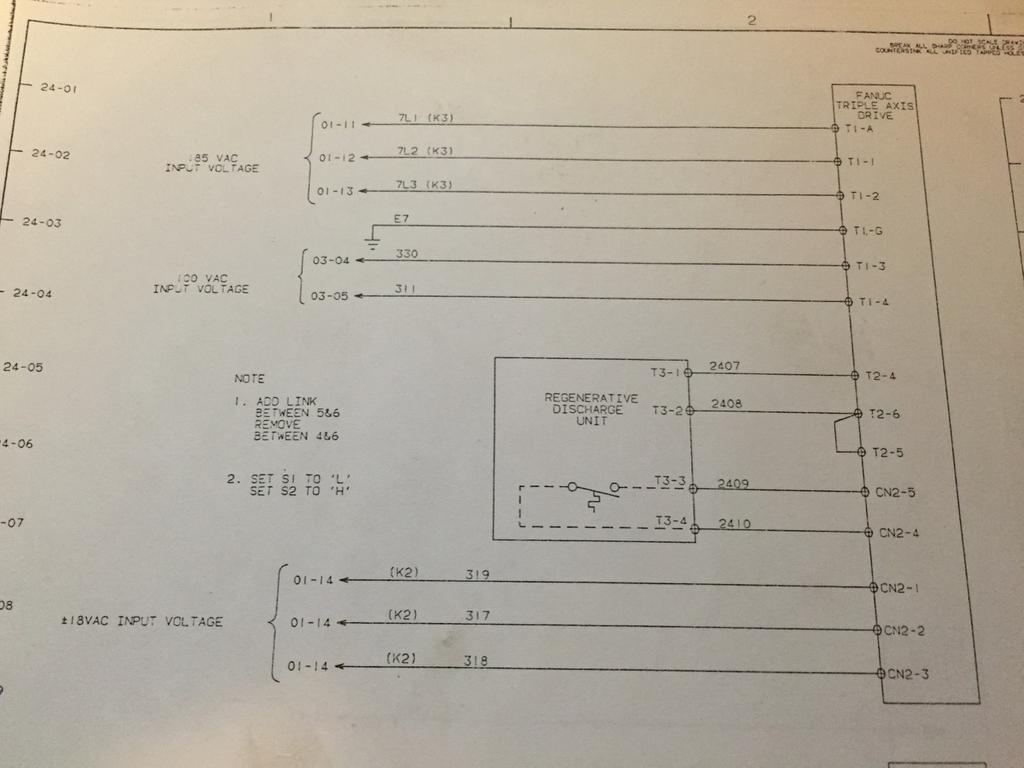

[01:11:15] <ssi> http://www.ebay.com/itm/High-Power-AMC-4-5-Axis-Brushless-Servo-Amplifier-Amp-Package-S30A40-S100A40AC-/321548297113?pt=LH_DefaultDomain_0&hash=item4addc5a399
[01:11:19] <ssi> holy balls
[01:11:27] <ssi> that 100A 400V drive
[01:11:40] <zeeshan|2> ah
[01:11:45] <zeeshan|2> i didnt know amc stood for advanced motion controls
[01:11:48] <ssi> the S30A40s are what I'm looking for... S30A20 would work as well
[01:11:49] <zeeshan|2> they make some fancy drives
[01:11:54] <ssi> yeah I like them
[01:11:55] <zeeshan|2> thats what our school uses for a lot of lab equipment
[01:12:06] <ssi> I just got a pair of SE10A20AC drives in the mail today
[01:12:13] <ssi> they're perfect except for the current rating :/
[01:12:17] <zeeshan|2> how much
[01:12:18] <zeeshan|2> amp
[01:12:24] <ssi> 5A continuous, 10A peak
[01:12:28] <zeeshan|2> weaksauce
[01:12:29] <zeeshan|2> :D
[01:12:32] <ssi> yeah :(
[01:12:37] <zeeshan|2> prolly can use em for something else
[01:12:48] <zeeshan|2> one can always use a servo drive
[01:12:50] <zeeshan|2> and a servo motor
[01:12:51] <zeeshan|2> somewhere!
[01:12:54] <ssi> I'm still not really clear on what current I need
[01:12:59] <ssi> these motors are marked 6.8A
[01:13:05] <zeeshan|2> at what volts
[01:13:05] <ssi> but I don't know if that's peak or continuous or what
[01:13:06] <zeeshan|2> though
[01:13:14] <ssi> well they're labeled 110V
[01:13:21] <ssi> but apparently that means 190VDC :P
[01:13:24] <zeeshan|2> wat
[01:13:25] <zeeshan|2> how
[01:13:36] <ssi> well 110V rectified and filtered
[01:13:49] <ssi> I'm just still a little foggy on the way they rate these things
[01:13:58] <zeeshan|2> servo amplifiers
[01:14:01] <zeeshan|2> need filtered power?
[01:14:05] <ssi> I guess it's rated in Vrms and Arms
[01:14:22] <ssi> we're talking about motors here
[01:14:30] <zeeshan|2> oh okay
[01:14:37] <zeeshan|2> Yo guys!
[01:14:38] <zeeshan|2> german people
[01:14:42] <zeeshan|2> please help me diagnose!
[01:14:53] <zeeshan|2> https://www.flickr.com/photos/128539016@N05/15538891175/
[01:14:56] <zeeshan|2> where are those pins going! :P
[01:15:29] <zeeshan|2> ssi
[01:15:31] <zeeshan|2> so if you use th ose amps
[01:15:36] <zeeshan|2> it'll just not output as much torque
[01:15:40] <zeeshan|2> big deal! :P
[01:15:43] <ssi> yeah
[01:15:55] <ssi> I'm planning on running them until a deal on some SE30A20s comes along
[01:16:00] <ssi> also I only have two of them!
[01:16:01] <ssi> heh
[01:16:14] <ssi> I have some BE25A20 drives coming next week
[01:16:18] <ssi> three of them
[01:16:23] <ssi> they would do the job, but they're trapezoidal drive
[01:16:31] <ssi> and in order to use them I'll need even better hall converters :)
[01:16:40] <ssi> and I'd prefer to have sinusoidal commutation if at all possible
[01:19:55] <zeeshan|2> :D
